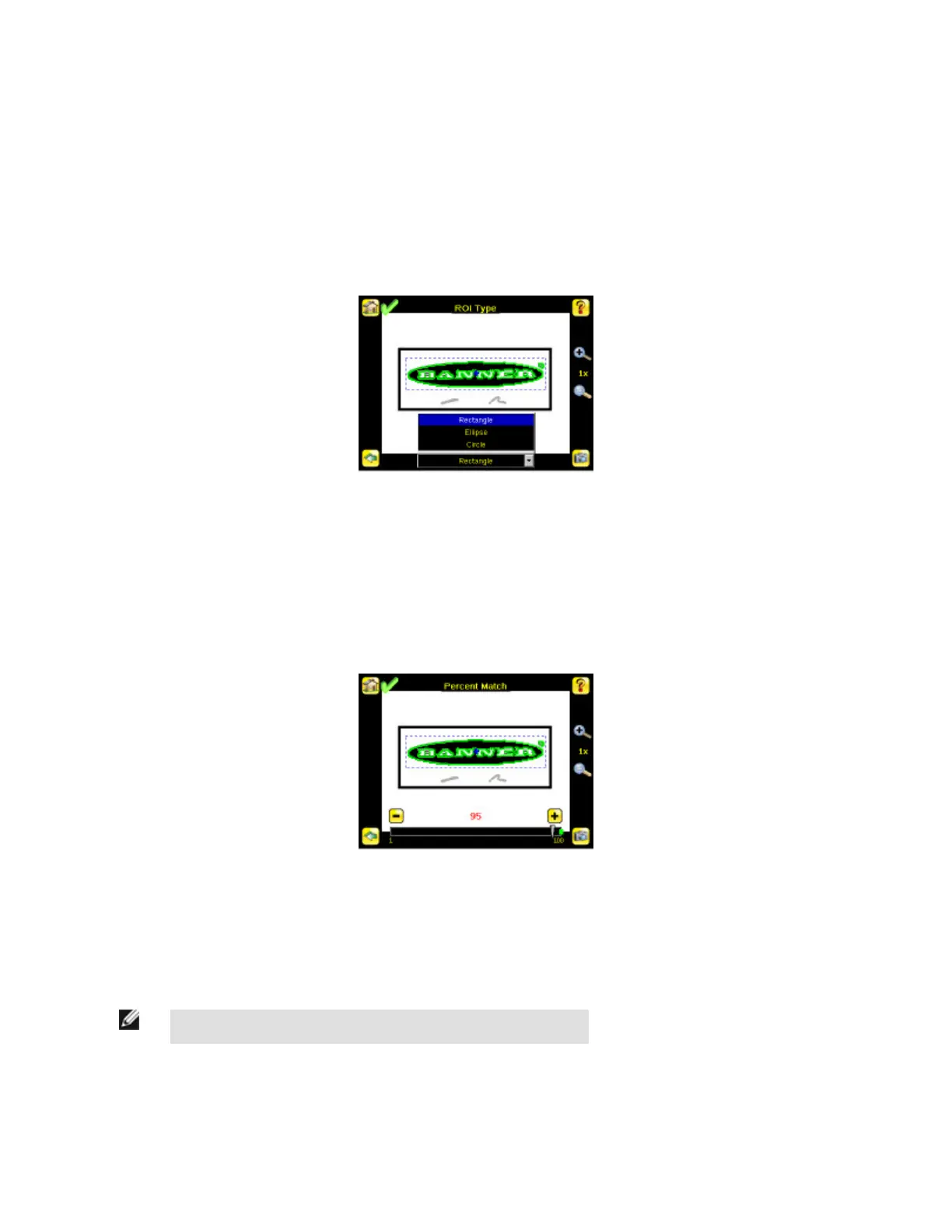

ROI Type (Match)
The Region of Interest (ROI) is the user-defined area on the screen that the sensor will analyze. The ROI Type can be rectangular,
elliptical, or circular. From the menu at the bottom of the ROI Type screen, select the ROI Type to use for the inspection. Adjust the ROI
as appropriate for your inspection. An ROI can be as large as the entire Field of View (FOV).
Inspection > Match > ROI Type
Percent Match
he Percent Match setting adjusts for how closely the inspected part or label matches the reference part or label. The Percent Match scale
is from 0 to 100 where 0 is the most tolerant and 100 is the least tolerant. Move the slider to the left or to the right.
Main Menu > Inspection > Match > Percent Match
Rotation Range
The Rotation Range sets the expected rotation of parts or labels during an inspection. For example, a value of 45 means that the part
may rotate 45 degrees in either direction from the reference part and still pass. Move the slider from 0 to 180 degrees.
NOTE: The smaller the rotation range, the faster the inspection will run.
Main Menu > Inspection > Match > Rotation Range
iVu Series Image Sensor
Rev. E www.bannerengineering.com - tel: 763-544-3164 31
