Number of Edges

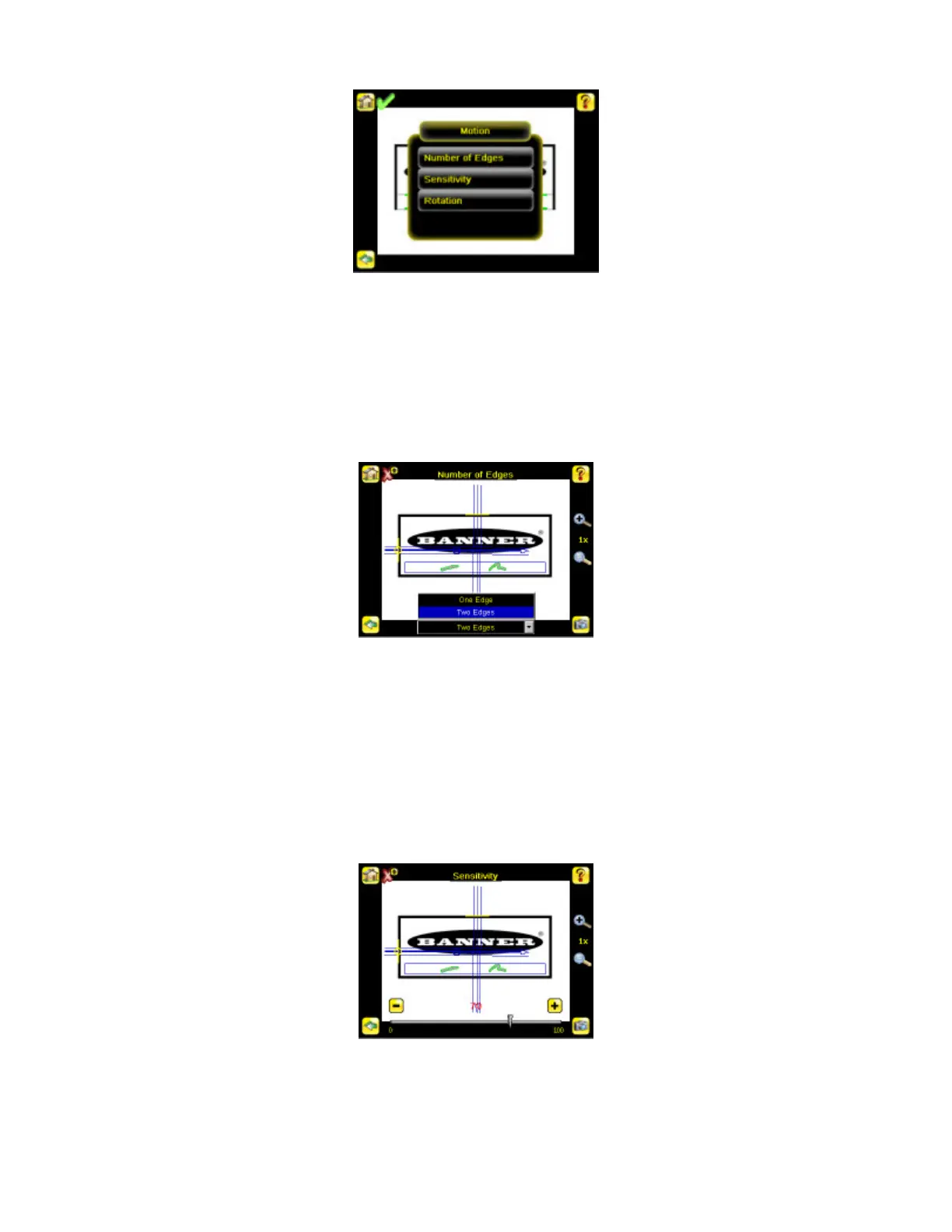

On the Number of Edges screen, use the radio buttons to select One Edge or Two Edges. If One Edge is selected, motion is tracked in
one direction (by default, horizontally); if Two Edges is selected, motion can be tracked horizontally and vertically.
Main Menu > Inspection > Motion > Number of Edges
Sensitivity
Sensitivity is used to fine-tune how sensitive the sensor is to finding a reference edge. The Sensitivity value helps account for light varia-
tions that might affect how well the sensor detects edges on inspected parts. The Sensitivity scale is from 0 to 100 where 0 means least
sensitive and 100 means most sensitive. If set near 0, the sensor will only find very sharp edges with strong contrast. If set near 100, the
sensor will find very dim or blurry edges, and may be unstable due to noise within the image.
Main Menu > Inspection > Motion > Sensitivity
Rotation
Rotation can be Enabled or Disabled. Select Enabled if the part can be expected to rotated during the inspection.
