4. Product and components

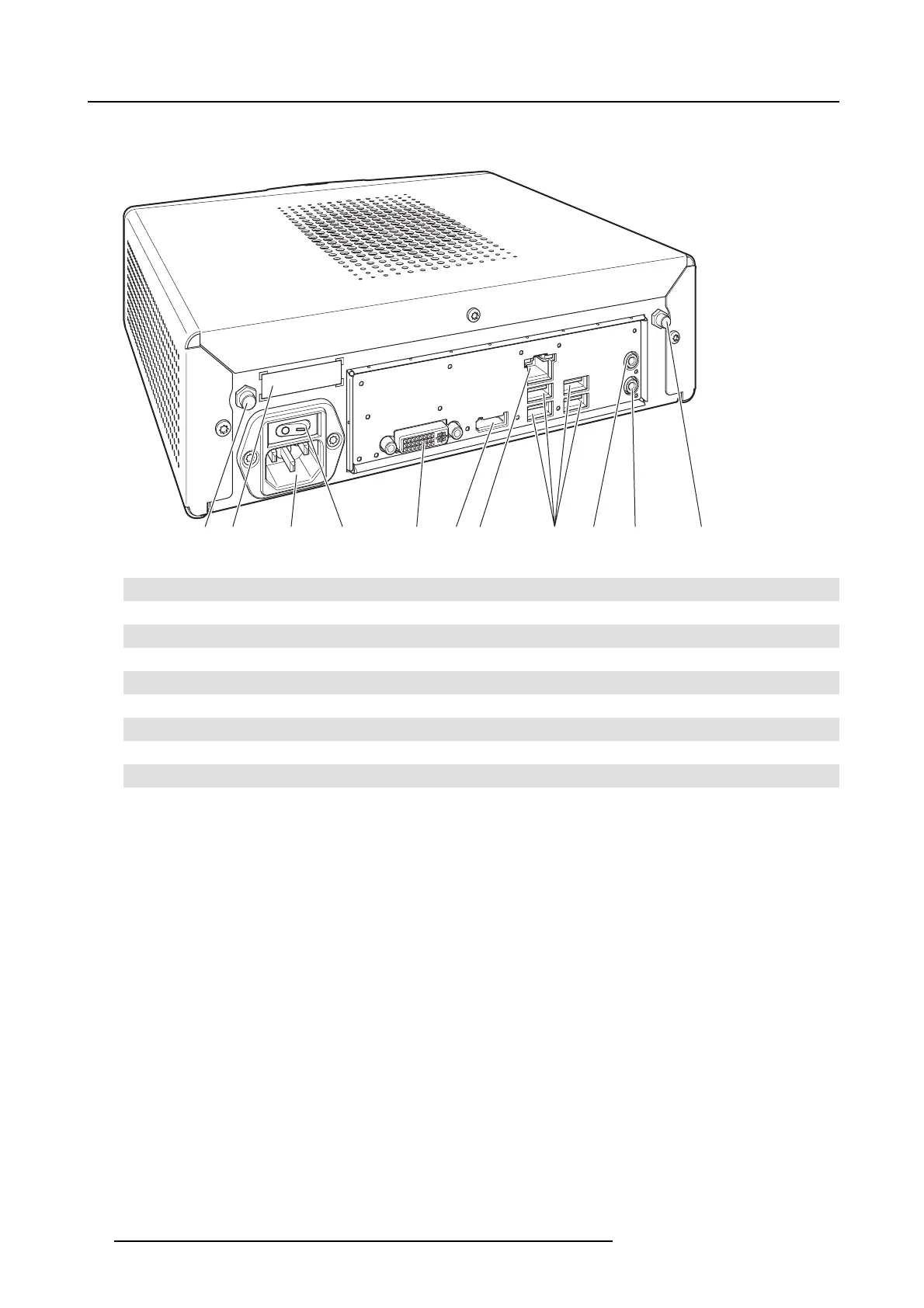

Back la yout of the Base Unit
At the back of the Base Unit you can find the rocker switch, the label, the ports and connectors of the Base Unit.
1 2 3 4 5 6 7 8 9 10 1
Image 4-4
Backside of the Base Unit
1
Fixture points for the antenna
2
Label containing the article number and power rating of the product
3 Mains power connector
4Rockerswitch
5
DVI-I display connector
6 DisplayPort connector
7
LAN Ethernet connection
8
4 USB ports
9 Audio In port
10
Audio Out port
Rocker switch
The rocker switch is used to power on and off the Base Unit.
• ToswitchontheBaseUnit,setthero
cker switch to “I”.
• To shut down the system, set the rocker switch to “0”.
Mechanical fix ture points
The mechanical fixture points are located at the bottom of the Base Unit
Antenna
Two antennas are included in the ClickShare box. To avoid damage during transport, they are not pre-mounted. Depending on the
installation method you should secure the antenna to the back of the Base Unit or to the front panel of the rack mount.
The antennas can rotate for a better wireless connection.
Usage of antennas other than the ones provided with the unit are allowed within the restrictions on usage of other antennas defined
by local regulations. Barco does not take responsibility for damage or disturbance of other devices that may be caused by using a
different antenna. The use of an active power amplifier is not allowed.
Antenna type : Dipole
Gain : Maximum 2dBi peak gain in 2.4GHz and 5Ghz band
Ventilation grids
Ventilation grids are fo
reseen on the top and both sides of the Base Unit.
18
R5900006 CLICKSHARE 04/12/2013
