4. Product and components
Image 4-5

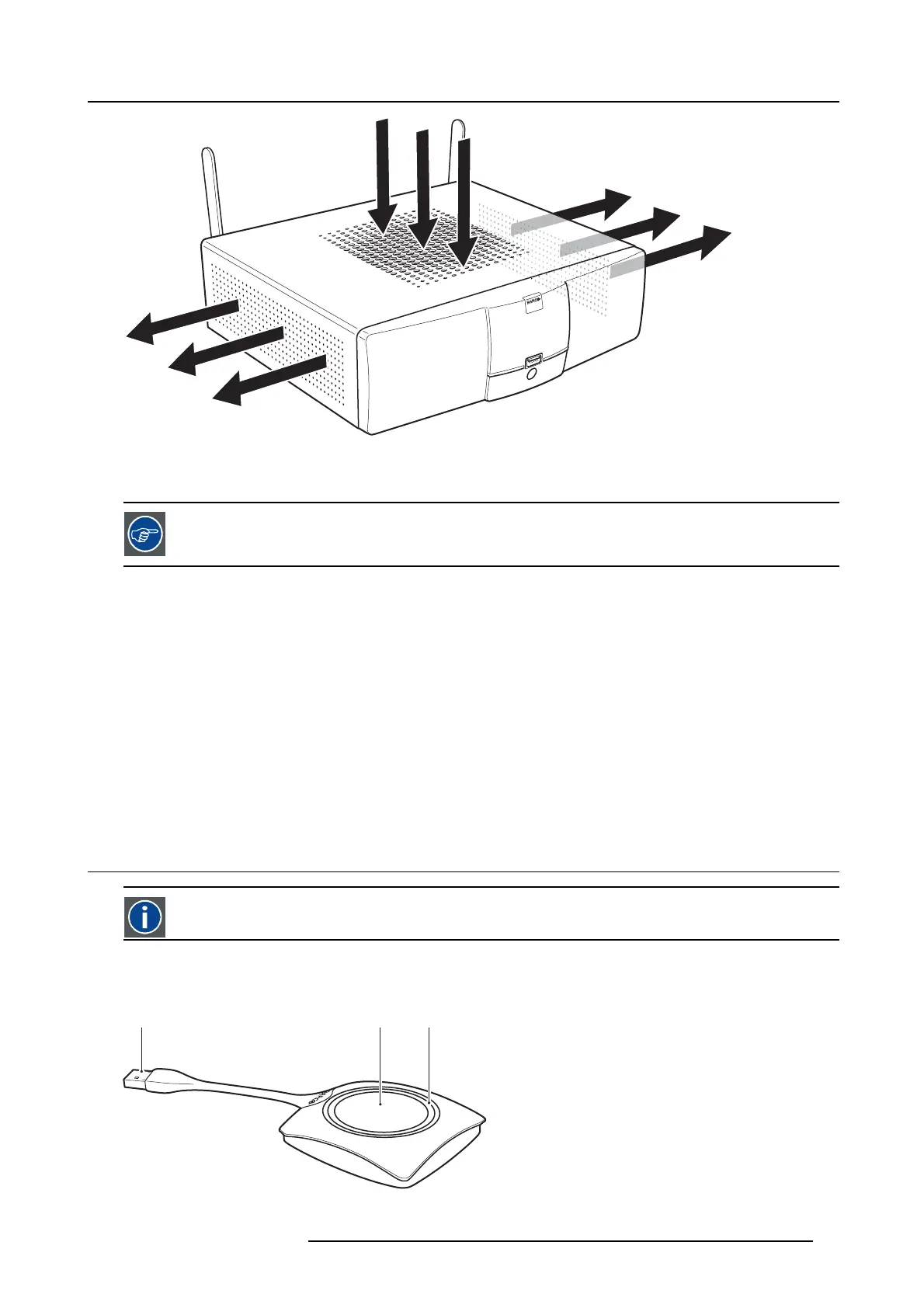

Ventilation grids IN and OUT
The Base unit sucks air via the top ventilation grid and push hot air out on both sides.
Make sure not to cover the ventilation grids during operation of the B ase Un it. Always keep a free area of
minimum 50 m m in front of all ventilation grids.
Bottom layout of the Base Unit
The serial number label with the applicable certification logos is stuck at the bottom of the Base Unit.
The serial number label contains:
• the Barco logo
• the Barco part number
• the serial number
• the revision number
• the production date (month/year)
• markings for applicable standards (CE, CCC, UL, ...)
• markings for waste regulation
• “Made in ...”
4.5 About the Button
Buttom
A Button toggles the sharing of the individual PC or MAC screen on the meeting screen.
Button layout
A Button consists of three main components.
1 2 3
Image 4-6
Button layout
R5900006 CLICKSHARE 04/12/2013 19

Barco ClickShare Specifications

General

Plug-and-Play	Yes
Video Outputs	HDMI
Supported Resolutions	Up to 4K UHD
Number of Concurrent Users	Up to 8 (depending on the specific model)
Operating System Compatibility	Windows, macOS
Security Protocols	WPA2
Maximum Resolution	3840x2160
Connection	USB
Encryption	AES
Supported Video Formats	H.264
Wireless Technology	Wi-Fi
