Barco DP2K-S Series User Manual

12. Lamp House & Lamp replacement
3
1
2

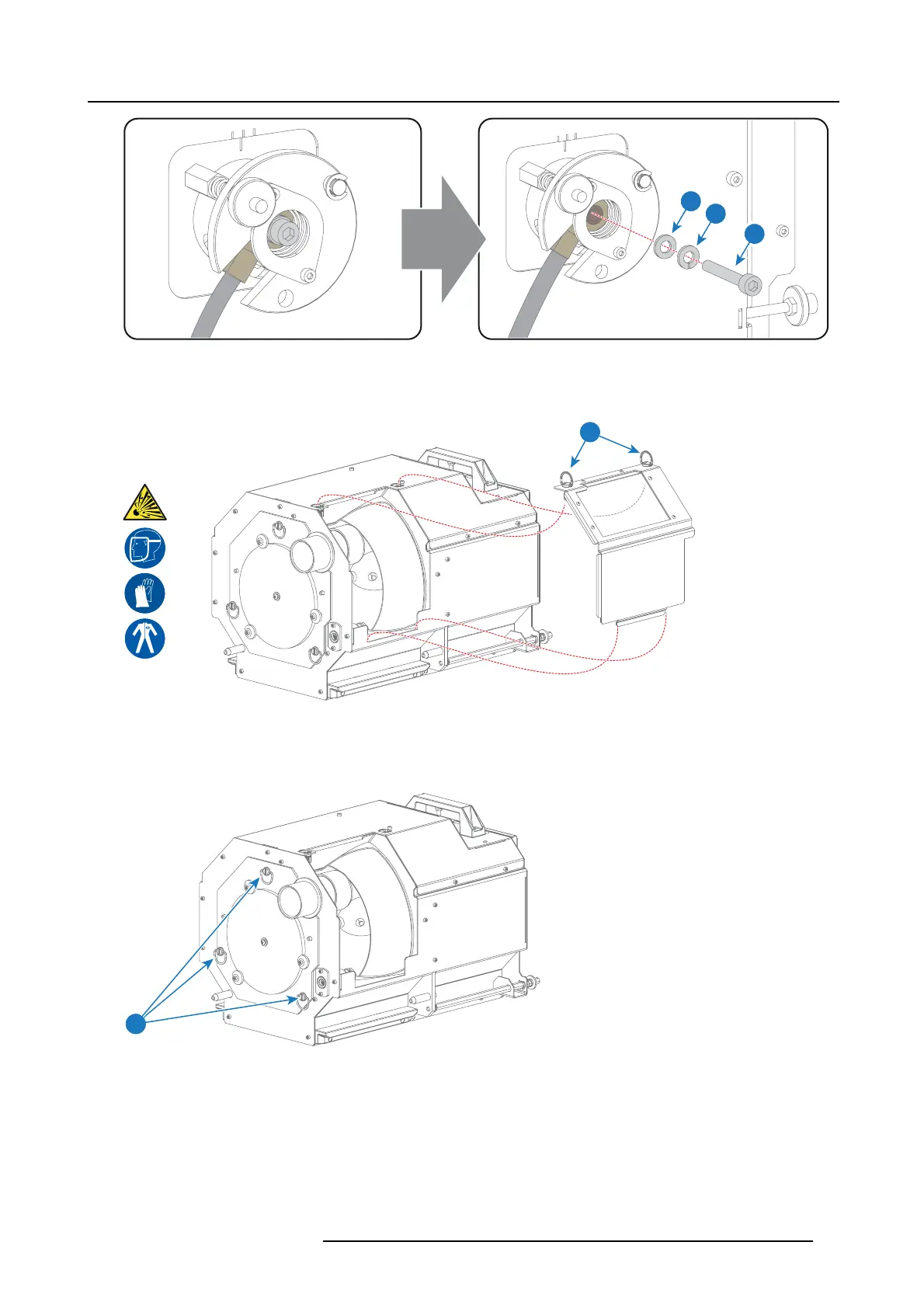

Image 12-15
2. R emov e the side cover of the Lam p House by releasing the two quarter turn screws (reference 4 i
mage 12-16) of the side cover
as illustrated.
Caution: Ensure that y ou wear protective clothing, a full face shield and protective gloves.
4
Image 12-16
3. R elease the three quarter turn screws (reference 5 image 12-17) of the UV blocker assembly as illustrated. Do not remove the
UV blocker yet. Hold it in position!
Caution: Ensure that the anode support remains in its p osition while releasing the screws as it serves to support the front end
of the lamp.
5
Image 12-17
4. Support the xenon lamp ins ide the Lamp House w ith one hand while rem oving the UV blocker assem bly from the Lamp House.
Take care not to damage the UV blocker.
Warning: Supporting the xenon lamp with one hand prevents the xenon lamp from dropping and colliding with the chas sis of
the Lam p H ouse.
R5977692 DP2K-S SERIES 10/12/2012
85
