2. Getting to know the projector.
2.5 LCD panel
About
The LCD panel (reference 1, image 2-3) is located on the r ight side of the projector, and has two main functions:
1. Showing the menus and adjustment information. and also a mirror of the OSD, (On Screen Display) described in User Interface
when this is enabled.
2. Information regarding the status of the projector showing this data:
- Projector status
- Network address
- Active source
- Current firmware version
- Operation Data
- Active functions (Enabled Functions).
Toggle between the two indications by using the Menu button on the keypad, or on the re mote control
The LCD Display will fade out 15 seconds after the las t key operation.
2.6 Local keypad
About
The Keypad gives direct access to s everal functions, in addition to access to the menu system. The keypad and remote control
functions are equal.
The keypad has a bac k light that can be switched on a nd o ff manually. The light turns off automatically after a preset time.
The S tandby key is equipped with white, blue and red backlight depending on the status of the projector. See table in "Power on /
Standby button backlight indications", page 16 for info regarding this.
1
2
3 4
9 8
5
7
6
10

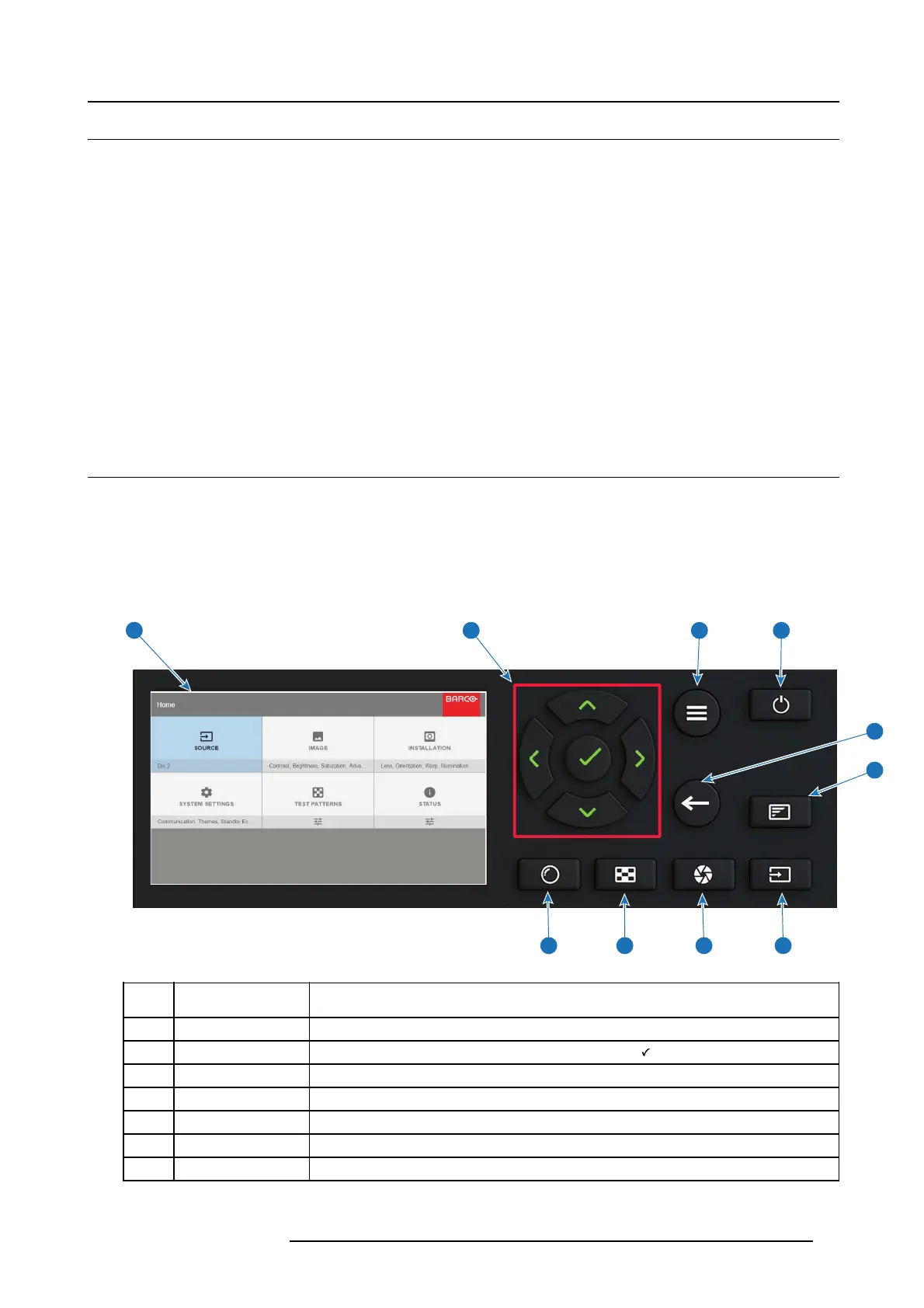

Image 2-3
Item
No.
Name Description
1 LCD Display Shows Projector s tatus and navigation menu.
2 Navigation keys Navigation arrows (up, down, left, right), confirm sele ction ( )
3 OSD Display Enables the H om e Menu on the LC D screen and the OSD.
4 Standby Power on / standby
5
Back Undo action / back to previous screen.
6 OSD ON/OFF Deactivate the O n Screen Display (OSD). Only critical w arnings will be displayed.
7
Input Shortcut to input source m enu on LCD. Use navigation keys to select and enable input.
601–426 F70 SERIES 24/10/2017 17
