8. Installation menu

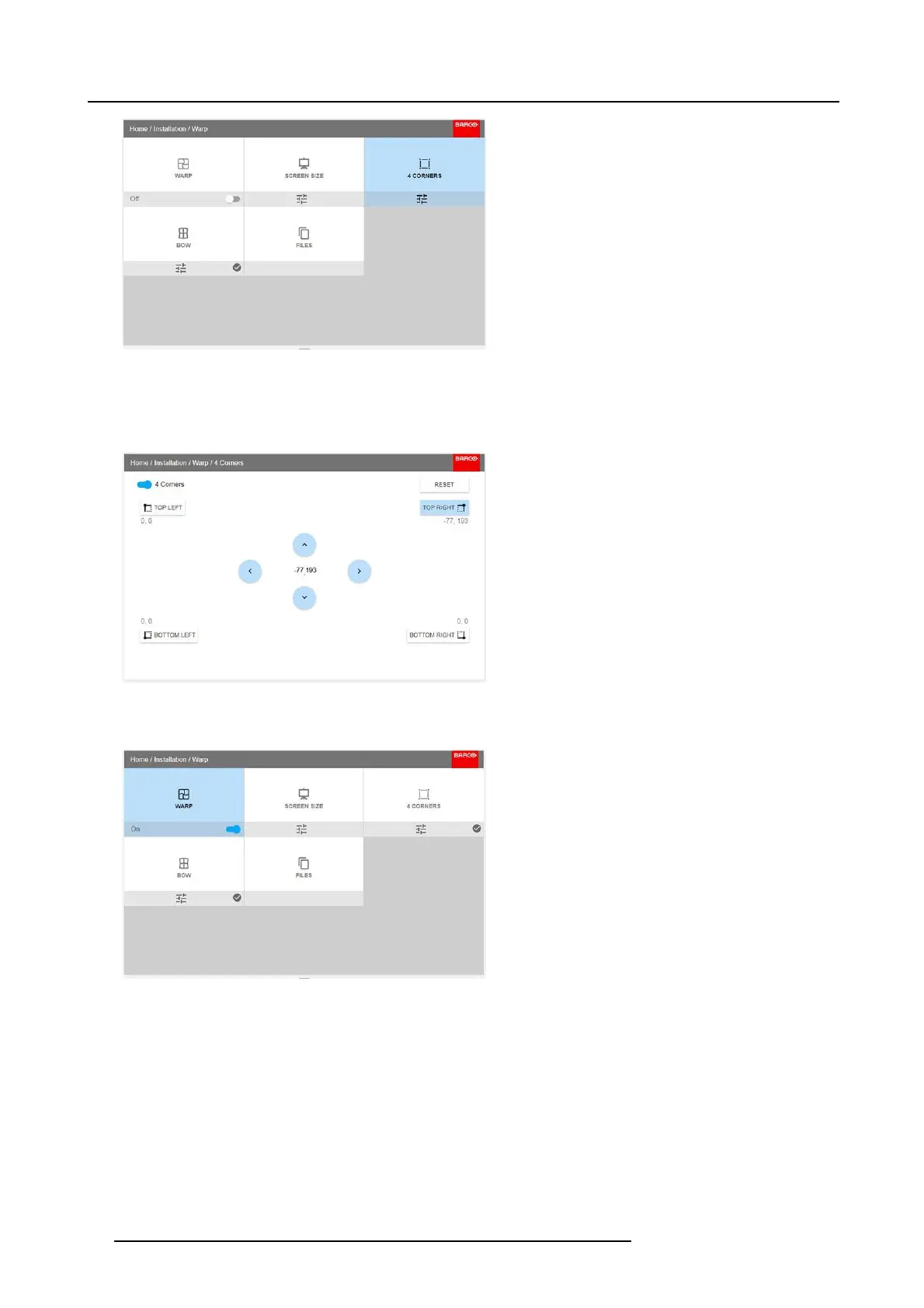

Image 8-18
2. To enable the 4 Corners Warping, Set the Warp slider to the right position. (Select and enter).
3. Select the c orner that must be w arped. If nee d for war ping s everal corners, selec t and adjust the corners one by one.
Adjust the value by the arrow keys. The value represent the movement of the X and Y coordinates for each corner. W hen the
warping is complete, exit the menu.
Image 8-19
4. If the picture still has a trapezoid shape, warp is not enabled. Select the Installation / Warp m enu, and press enter. The slider
moves to the right, and the warp status changes to “On”.
Image 8-20
8.4.5 Warping – Bow
About bow adjustment
A bow distortion can be adjusted so that a norm al image is displayed. Positive adjustments angles introduce m ore outside bow
distortion. Negative adjustments introduce m ore inside bow distortion.
70
601–426 F70 SERIES 24/10/2017
