8. Installation menu

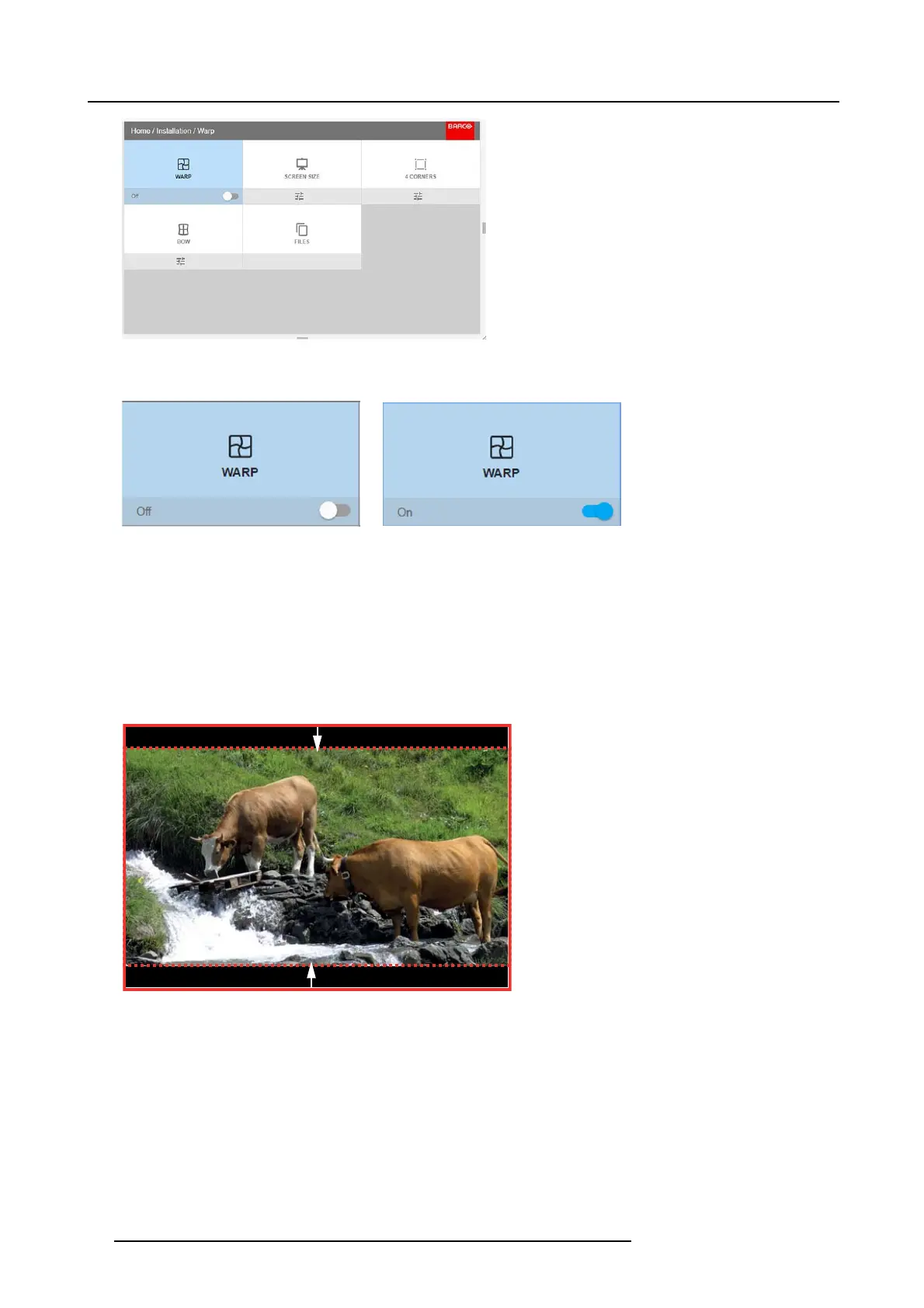

Image 8-11
2. In the Warp m enu, c lick Warp to toggle between On and Off.
Image 8-12
Image 8-13
8.4.3 Warping – Screen Size
About (Warp) Screen Size adjustment
If the used screen aspect ratio is different than the pr ojector aspect ratio, e.g. source is 16:9 and projector is 16:10, then black bars
will be projected. In the exam ple c ase a black bar on top and bottom of the image will be projected. T he warp area contains not
only the image information but also the black bars. If we want to position e.g. the active left top corner exactly on the s creen u sing
4 corner warp, then it is very hard to do that as we are m oving the black left top corner and we do not have control over the exact
position of image left top corner. By moving the outline of the warp screen size to the active image info rmation, the corner points of
the warp area are now exactly on the corner points o f the active image information and m akes warping m uch easier.
Image 8-14
Warp outline example
How to adjust the image?
1. In the main me nu, select Installation → Warp → Screen Size.
68
601–426 F70 SERIES 24/10/2017
