3. Lenses

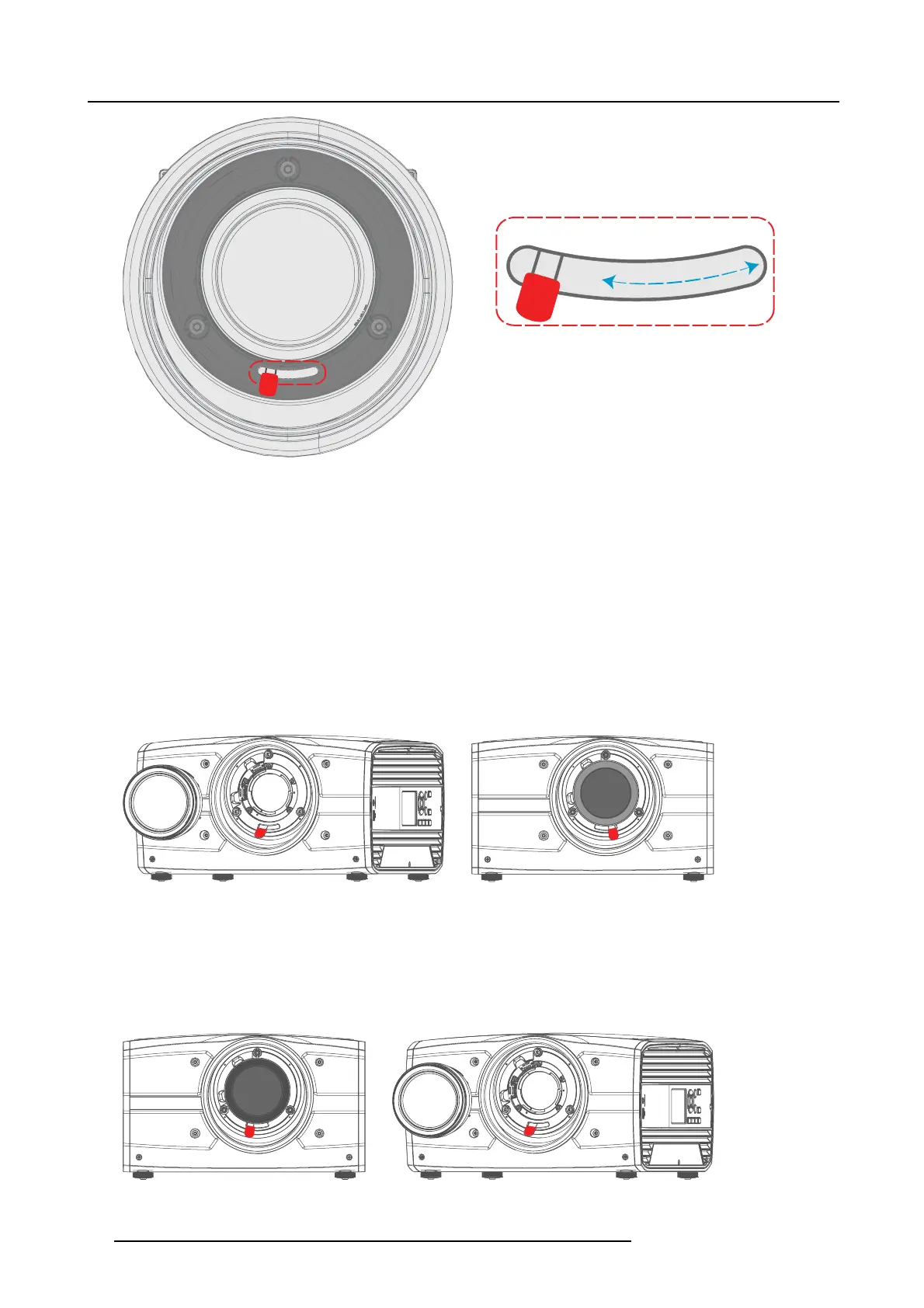

Image 3-3
Install a lens
1. Ver ify that the projector shu tter is activated (shutter is activated when the shutter icon on the projector keypad is r ed).
2. Ver ify that the lens releas e lever is in its default position at the far left of the slide, as illustrated.
3. Remove the protective cap at the lens bay onet end
4. Align the lens so that the red mar king on the bayonet is facing upwar ds.
5. Position the lens bayonet into the projector lens m ount and support in place with one hand.
6. Slide the lens leve r to the far right.
7. Ver ify that the lens is firmly in place before rem oving your hand from the lens .
Image 3-4
Removealens
1. Support the lens with one hand.
2. Use the other hand to slide the lens release lever to the far left position.
3. Pull the lens s traight out of the projector lens mount.
4. Replace with another lens, or install the projector lens cap.
Image 3-5
28 601–426 F70 SERIES 24/10/2017
