8. Installation menu

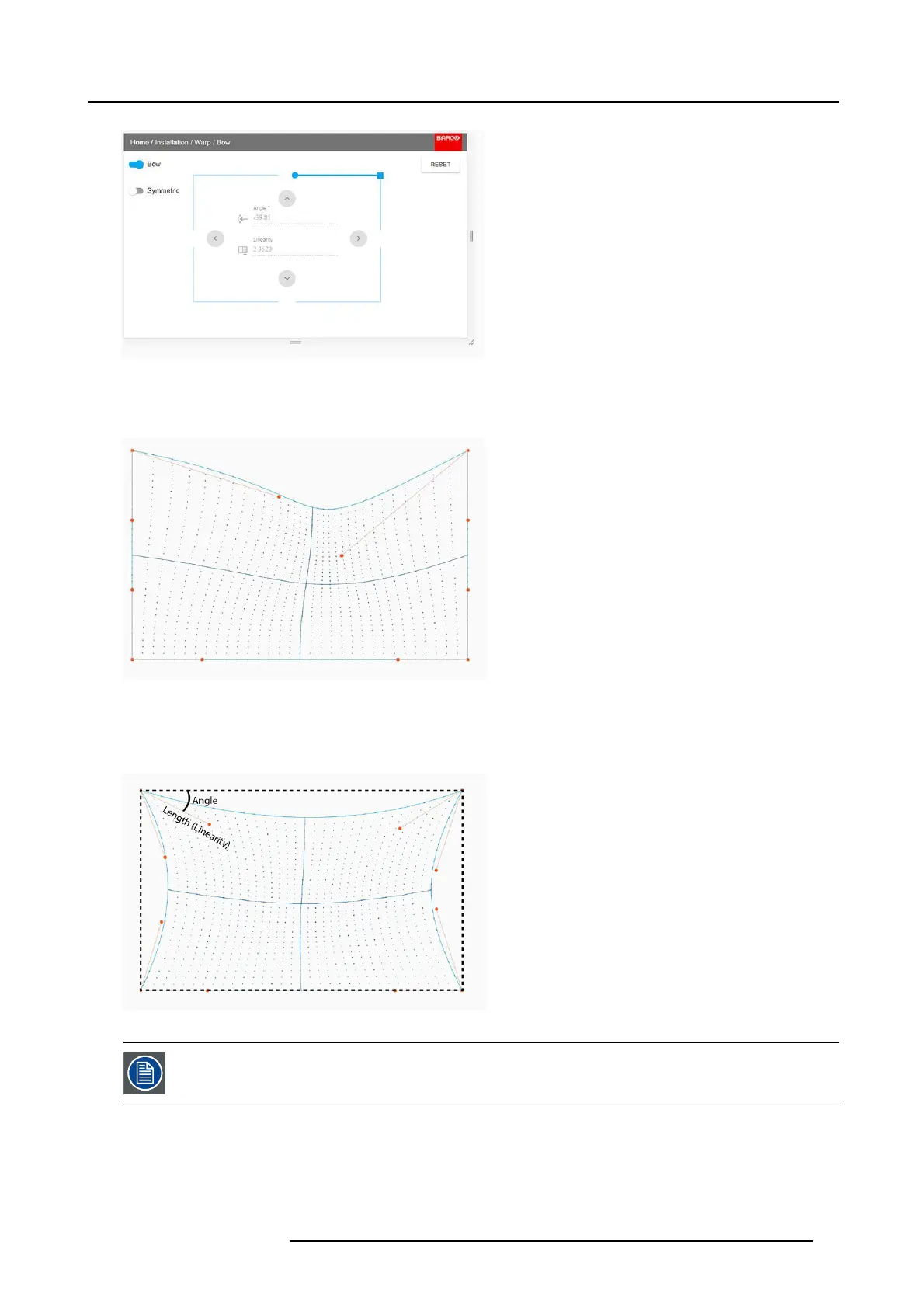

Image 8-27
Right vector of the upper side of the picture.
3. When corrected with v alues in the illustrations above, the picture will occ ur as shown below. Ob serve that the upper side of the
picture now has an asymmetric correction.
Image 8-28
Asymmetric bow correction
4. Repeat the step for each side of the picture that must be corrected.
Definition of angle and linearity (length) in the bow warp procedure
Image 8-29
To reset the bow adjustme nts, select Reset and p ress the OK button.
601–426 F70 SERIES 24/10/2017 73
