8. Installation menu

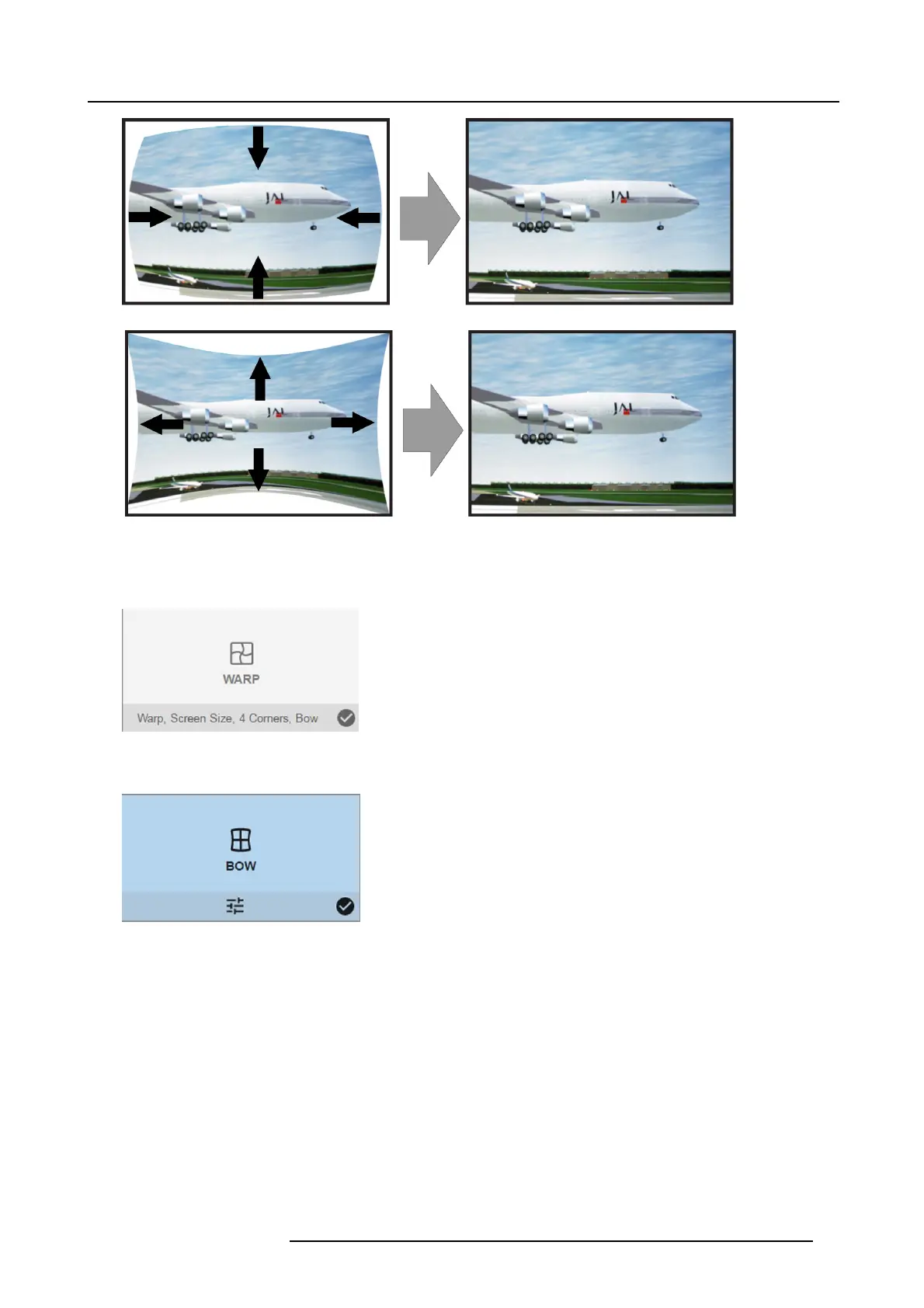

Image 8-21
Bow distortio n
Symmetric bow correction
1. In the main menu, select Installation → Warp.
Image 8-22
Installation menu, Warp
2. In the Warp menu, select Bo w.
Image 8-23
Warp menu, Bow
A check symbol at the bottom r ight corner indicates that the bow function is activated.
3. To enable Bow correction, make sure the Bow slider is set to On.
The slider is enabled when set t
o the right and when it is highlighted blue.
601–426 F70 SERIES 24/10/2017
71
