8. Installation menu

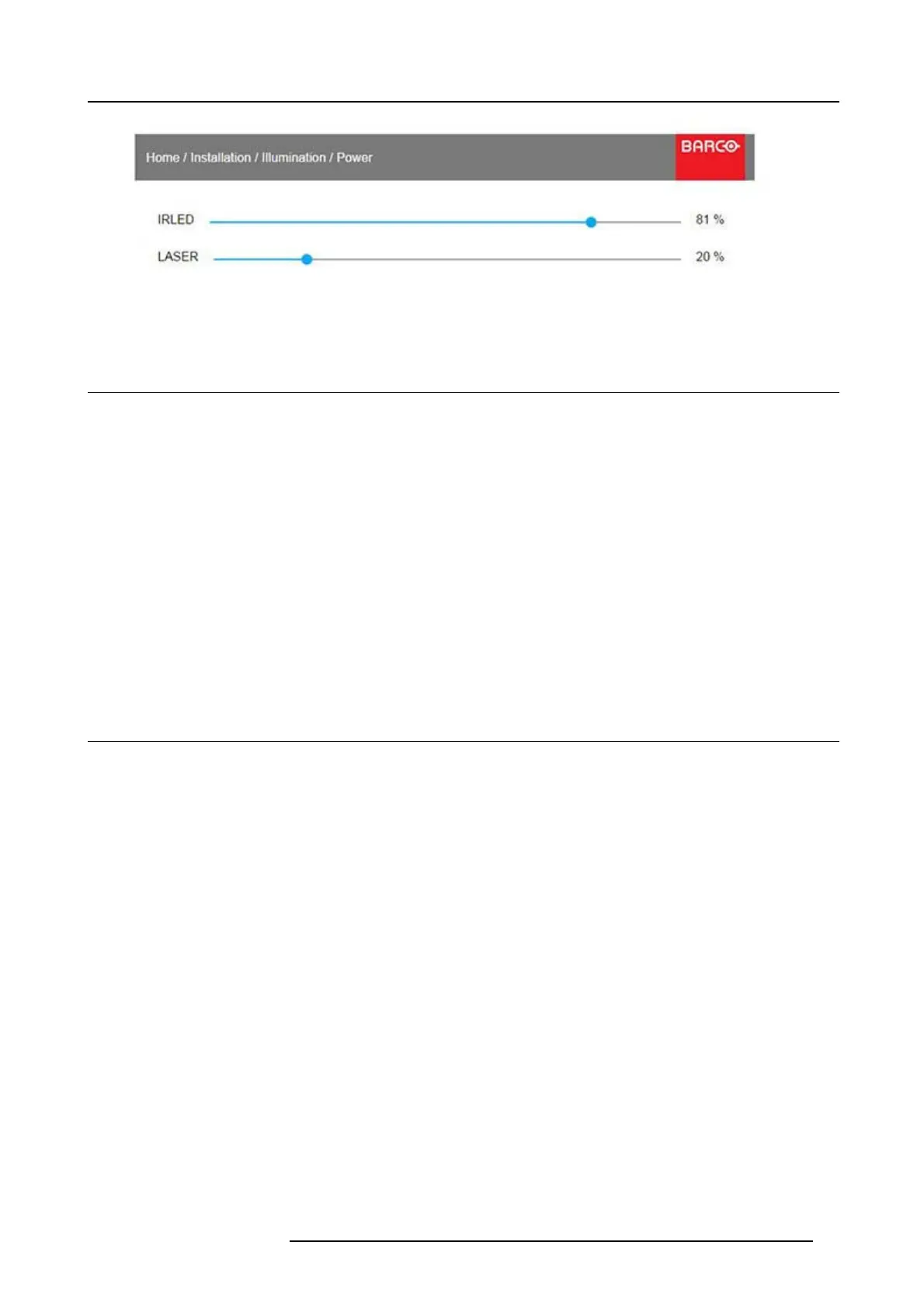

Image 8-5
8.2 Lens
About
Installation / Lens
Manage lens functions: focus, zoom , shift, and iris.
All changes occur dynamically.
Focus and zoom
Installation / Lens / Z oom
Use the navigational arrows, up and down, to adjust zoom.
Use the navigational arrows, left and right, to adjust focus.
Shift
Installation / Lens / S hift
Use the left, right, up and down navigational arrows to adjust the lens s hift in four directions.
8.3 Orientation
About
Installation / Orientation
Rotate the image on the imaging device depending on the physical installatin of the unit.
There are four installationoptions, as illustrated below:
• front/table
• front/ceiling
• rear/table
• rear/ceiling
Default: Table Front.
601–426 F70 SERIES 24/10/2017
65
