AW00097603000 Image Acquisition Control
Basler aviator GigE 93
The acquisition trigger wait signal will only be available when hardware
acquisition start triggering is enabled.
Time
= Camera is in a "waiting for
acquisition start trigger" status
Acq. Trigger
Wait Signal
Frame Acquisition
Exp. Readout
Frame Acquisition
Exp. Readout
Frame Acquisition
Exp. Readout
Frame Acquisition
Exp. Readout
Frame Acquisition
Exp. Readout
Frame Acquisition
Exp. Readout
ExASTrig
Signal

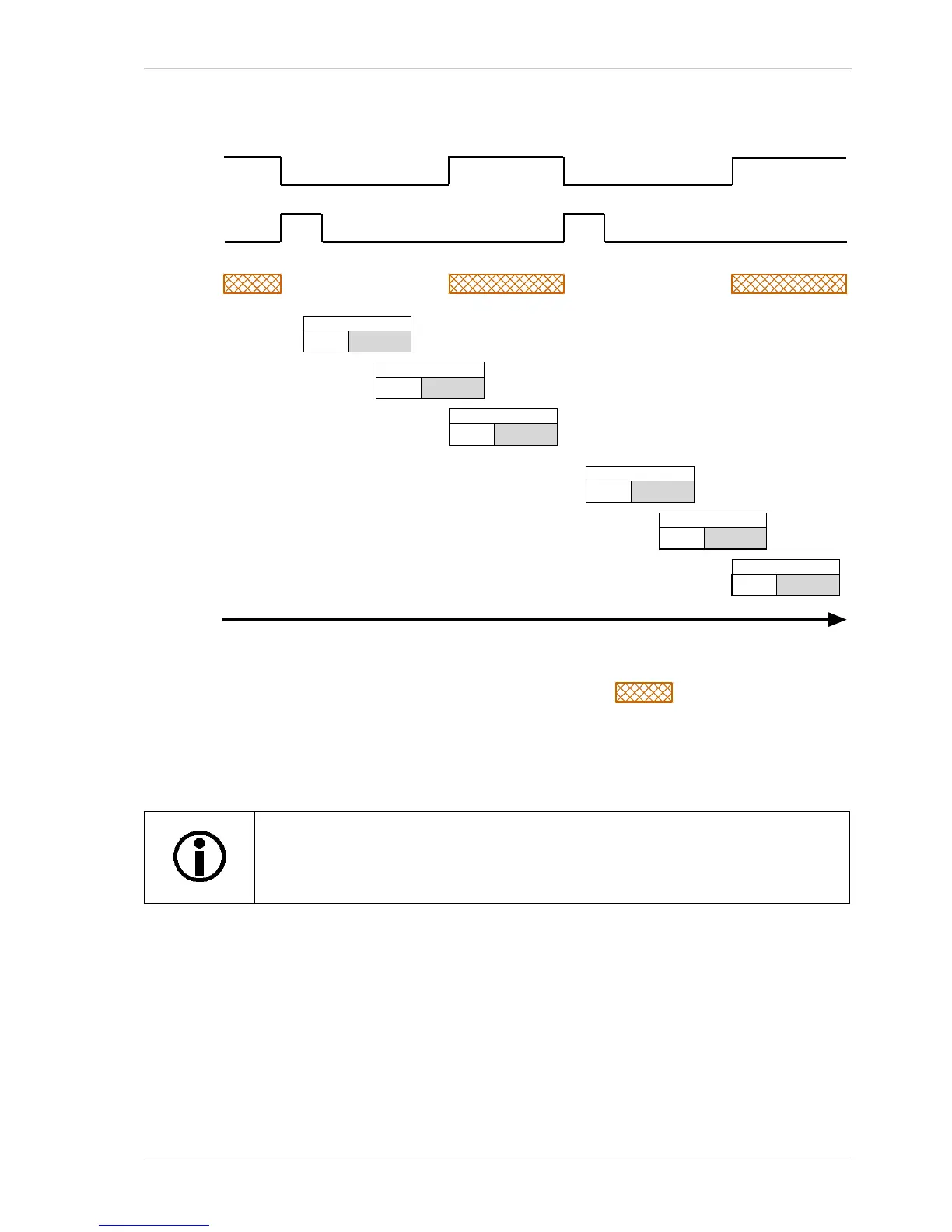

Fig. 28: Acquisition Trigger Wait Signal
