8 Basler aviator GigE
12.4
37.2
11.57
17.95
(56.3)
40.7
9.3
1.2
8 x M4; 6.5 deep
Photosensitive
surface of the
sensor
15.8
17.5
Ø 57.8
48
Ø 27
48
±0.2
62
±0.1
4x M4; 6.5 deep
= Reference plane
48
±0.2
62
±0.1
±0.2
6.3

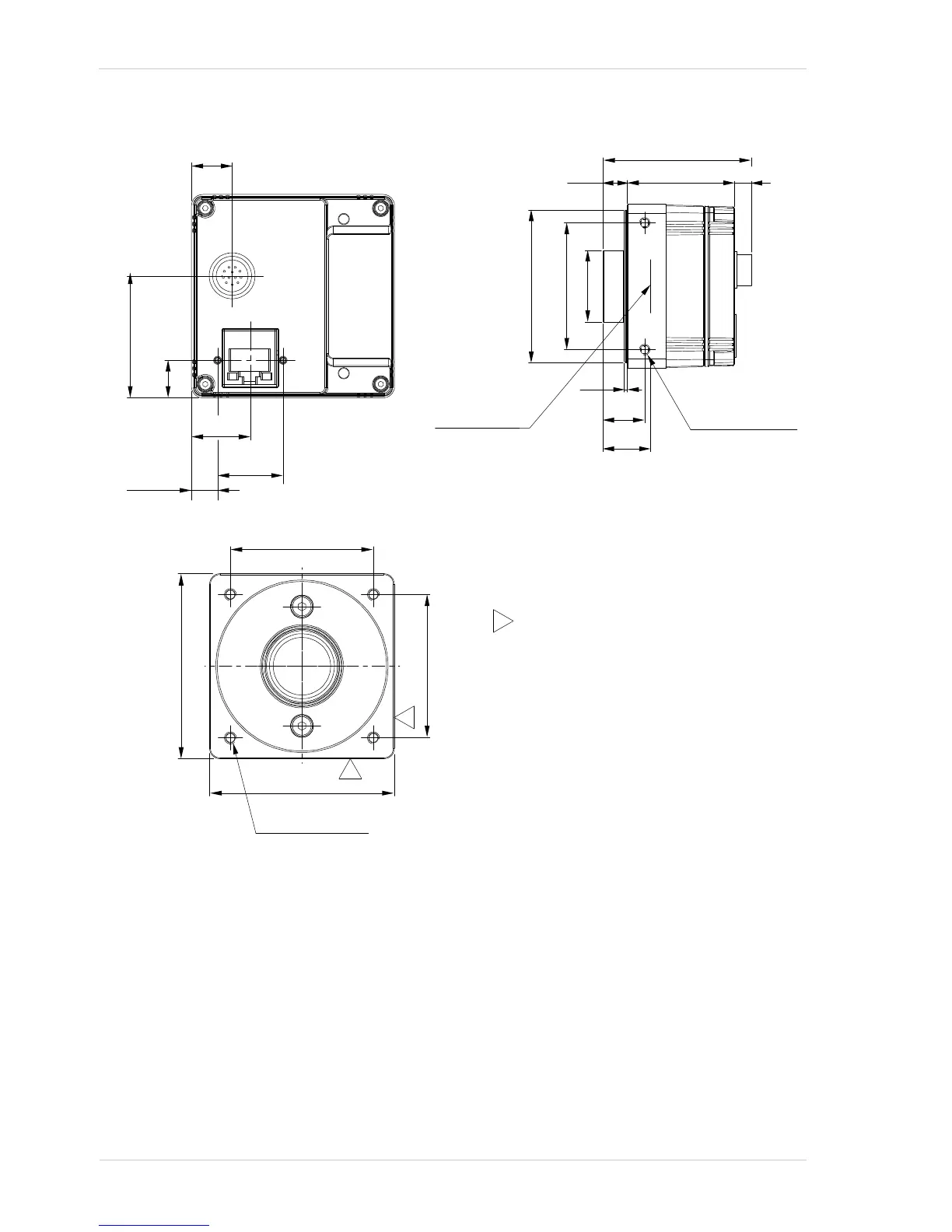

Fig. 3: Mechanical Dimensions (in mm)
20
7.95
