Basler GigE CAMERAS User Manual

AW00097603000 Standard Features
Basler aviator GigE 237
The Effect of Reverse Y on the Auto Function AOIs
If you are using the camera’s auto functions, you should be aware of the effect that using the
reverse Y feature will have on the auto function AOIs. When reverse Y is used, the position of the
auto function AOIs relative to the sensor remains the same. As a consequence, each auto function
AOI will include a different portion of the captured image depending on whether or not the reverse
Y feature is enabled. Figure 57 shows the effect of that reverse Y mirroring will have on the auto
function AOIs.
For more information about auto functions and auto function AOIs, see Section 10.7 on page 171.

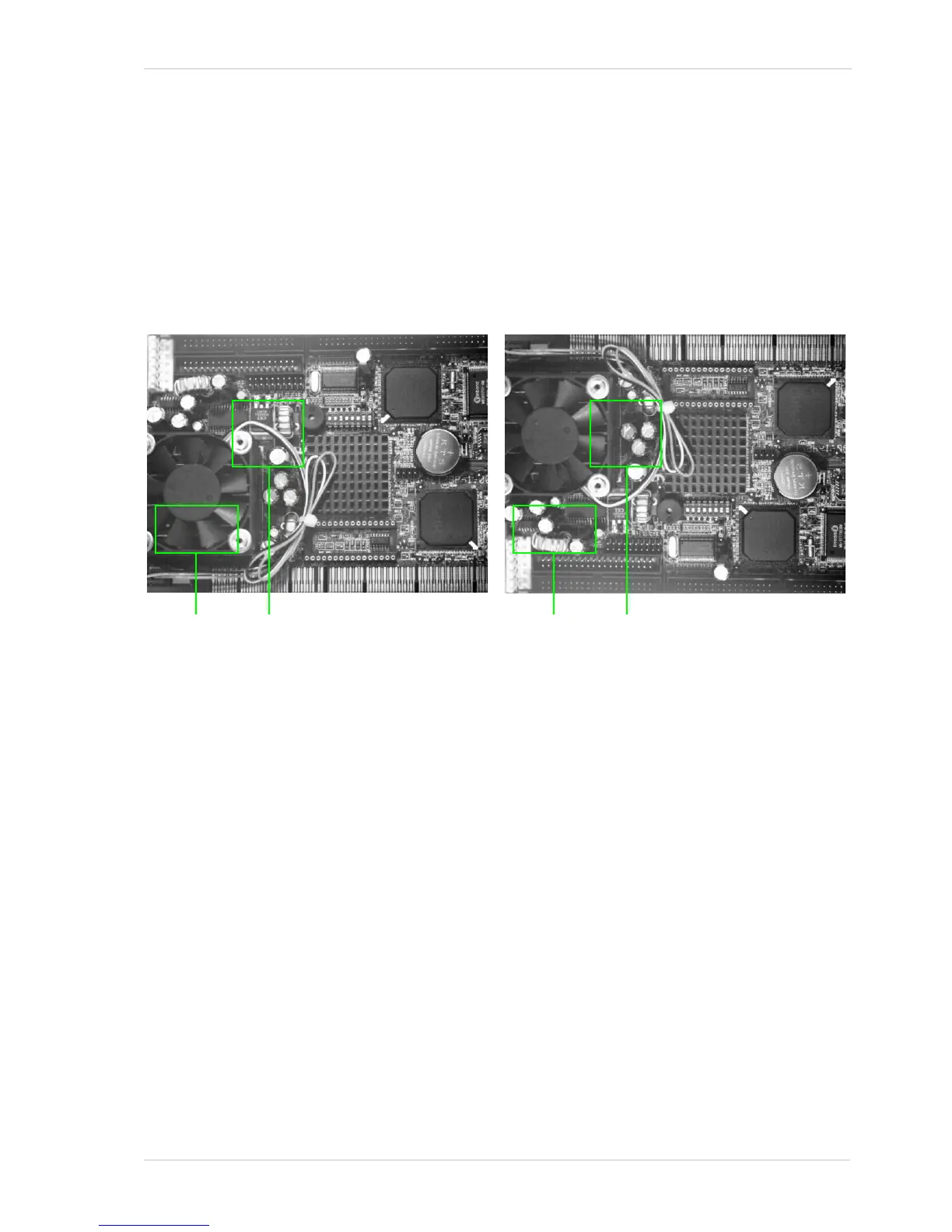

Fig. 57: Using Reverse Y Mirror Imaging with Auto Functions Enabled
Normal Image Reverse Y Mirror Image
Auto
AOI 1
Auto
AOI 2
Auto
AOI 1
Auto
AOI 2
