AW00097603000 Standard Features
Basler aviator GigE 249
Test Image 6 - Moving Diagonal Color Gradient

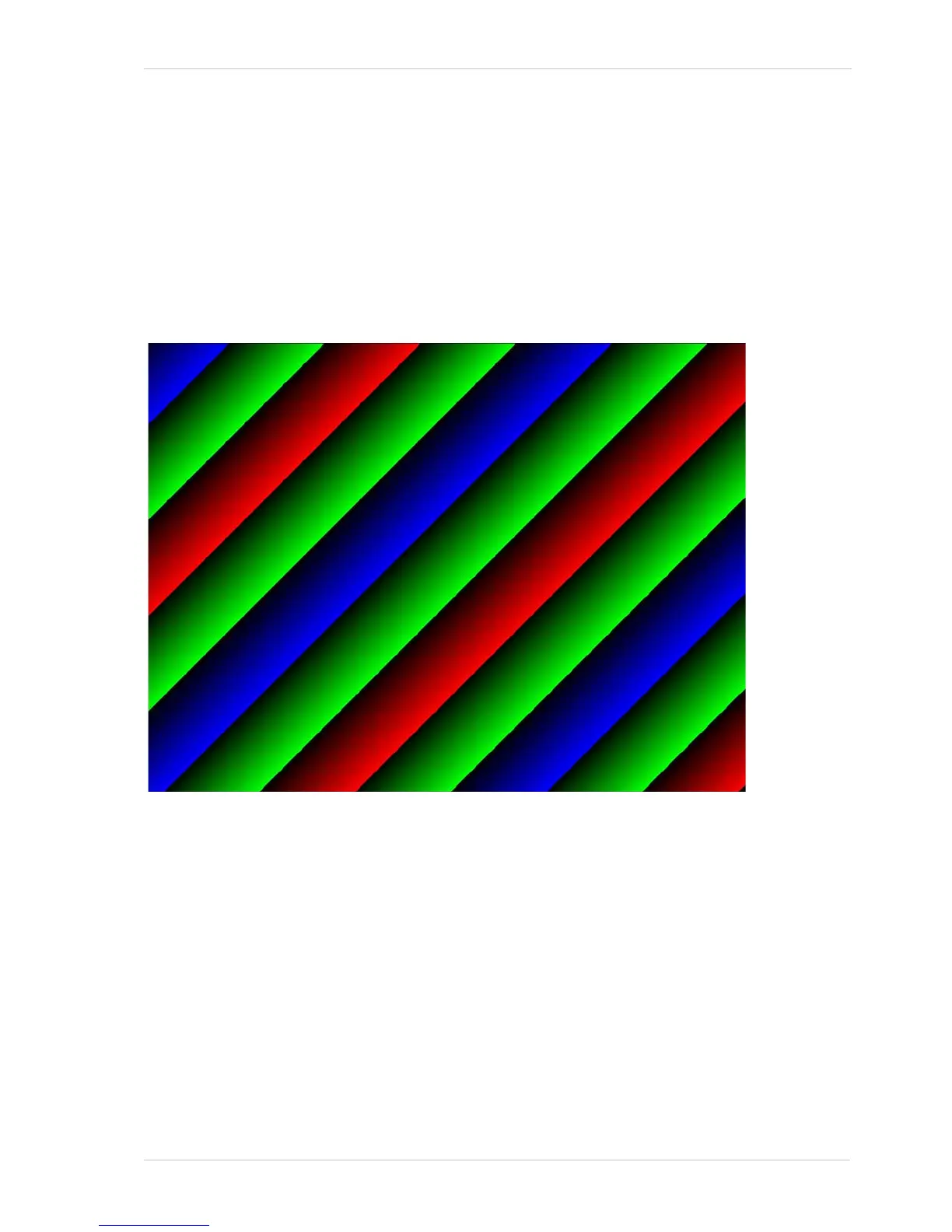

Test image 6 is an 8 bit fixed diagonal color gradient test image. Test image 6 is available on color
cameras only. When a color camera is set for test image 6, it delivers pixel data in the Bayer GB 8
format.
This test image can be used to test a color camera’s basic ability to transmit a color image.
It can also be used to test whether your frame grabber is correctly set to interpolate images
transmitted in the Bayer GB 8 format. If the colors in the images from your frame grabber do not
exactly match the colors in test image 6 as shown below, then your frame grabber is incorrectly set.
