Basler GigE CAMERAS User Manual

Physical Interface AW00097603000
42 Basler aviator GigE
Figure 14 shows a typical circuit you can use to monitor an output line with an LED or an opto-
coupler. In this example, the voltage for the external circuit is +24 VDC. Current in the circuit is
limited by an external resistor.
For more information about
 output line pin assignments and pin numbering, see Section 5.2 on page 32.
 configuring the output lines, see Section 5.8.4 on page 43.
1
2
3
4
5
6
7
8
9
10
11
12
I/O Out 1
Out 1 Ctrl
I/O Out VCC
Q
12-Pin
Receptacle
Your
Gnd
Your
Gnd
Voltage
Output
Signal
to You
Camera
Gnd
+3.3 to
+24
VDC

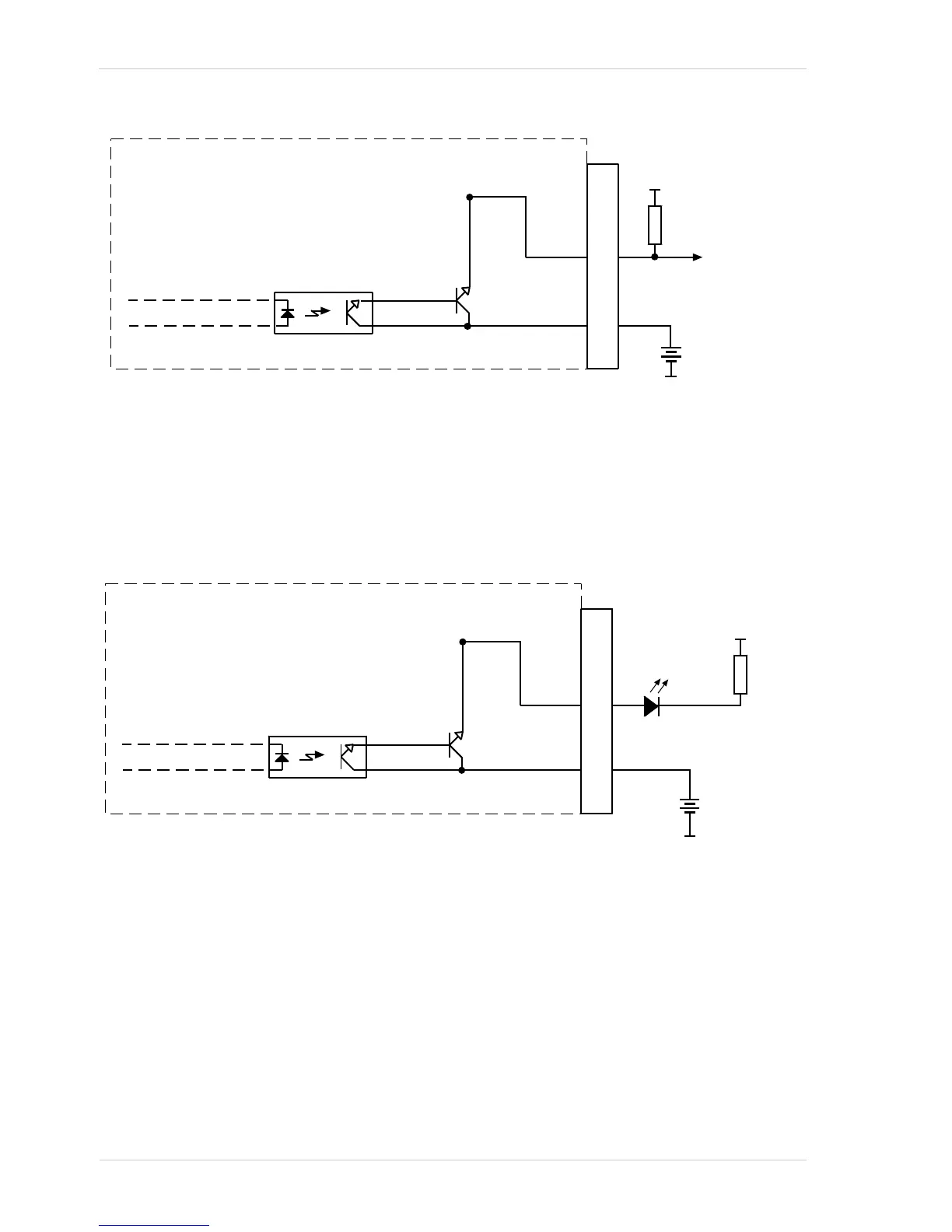

Fig. 13: Typical Voltage Output Circuit (Simplified)
1
2
3
4
5
6
7
8
9
10
11
12
I/O Out 1
Out 1 Ctrl
I/O Out VCC
Q
12-Pin
Receptacle
Gnd
Your
Gnd
Your
Gnd
LED
Output
toYou
Camera
+24
VDC
Fig. 14: Typical LED Output Signal (Simplified)
