Basler scout GigE User Manual

Standard Features AW00011916000
248 Basler scout GigE
The camera has cycled once through the complete sequence set cycle.
 When the next frame start trigger was received, the camera checks the current Sequence Set
Executions parameter value. Because the Sequence Set Executions parameter was set to 2
for sequence set 5, this sequence set can not, after two uses, be used again in the current
sequence set cycle. Therefore the camera advances to the next sequence set: The parameter
values of sequence set 0 are used for the image acquisition.
Another sequence set cycle has started.
 The sequencer feature is disabled while frame exposure and readout are in progress. The
complete frame is transmitted and the cycling through sequence sets is terminated. The
sequencer parameter values in the active set return to the values that existed before the
sequencer feature was enabled.

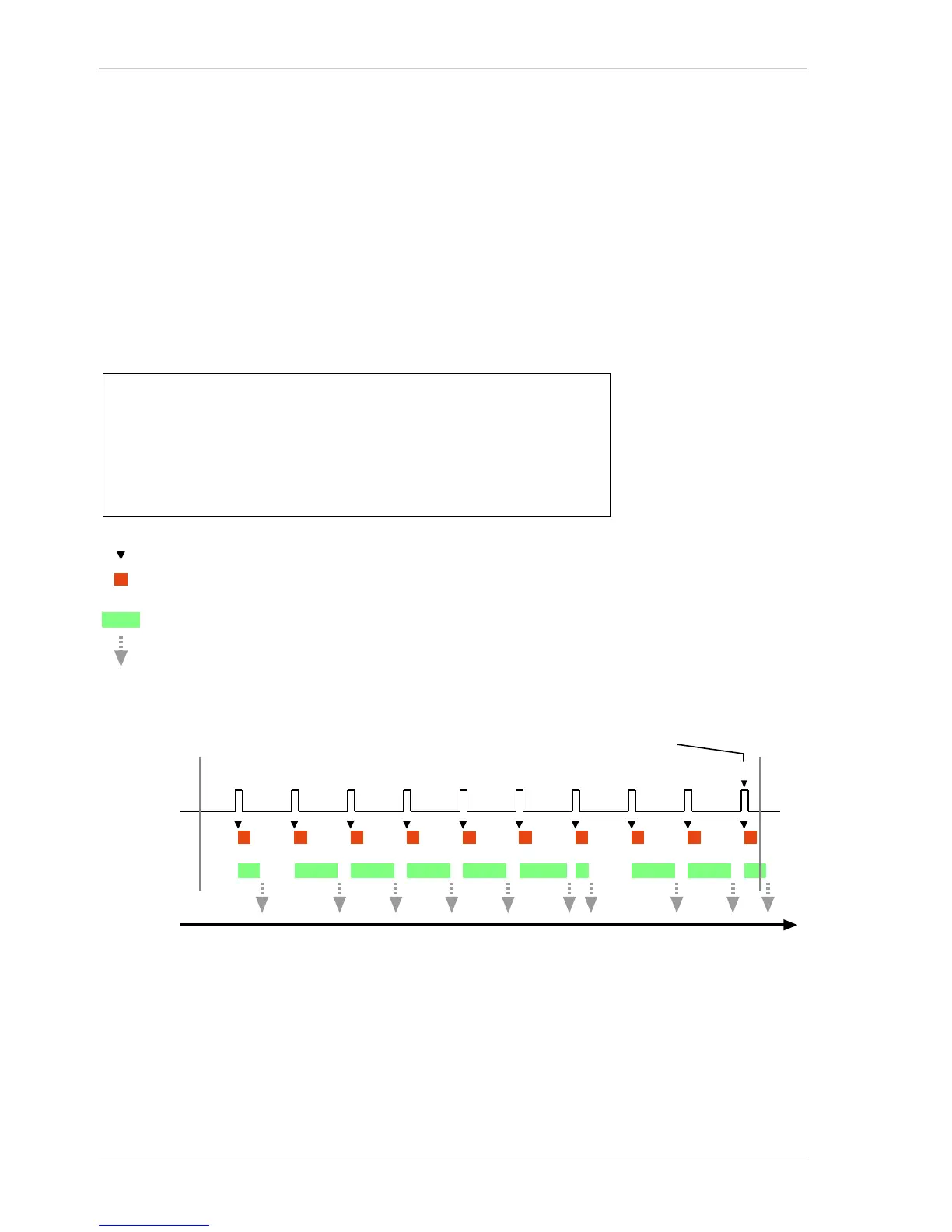

Fig. 74: Sequencer in Auto Sequence Advance Mode
0
1 1 3 4 5 510
2
0
Time
Frame Start
Trigger Signal
= camera selects a sequence set as the current sequence set
= frame exposure and readout
= frame transmission
Sequencer
Enabled
= current sequence set that is used for the image acquisition
(the sequence set index number is indicated)
Sequence Set Cycle
Starts Again
Sequencer
Disabled
Use Case: Operation in auto sequence advance mode:
Automatic cycling through the sequence set cycles with no action by the
user. Enabling and disabling of the sequencer feature.
Settings: Sequence Set Total Number = 6
Sequence Set Executions = 1 for sequence sets 0, 2, 3, and 4
Sequence Set Executions = 2 for sequence set 5
Sequence Set Executions = 3 for sequence set 1
