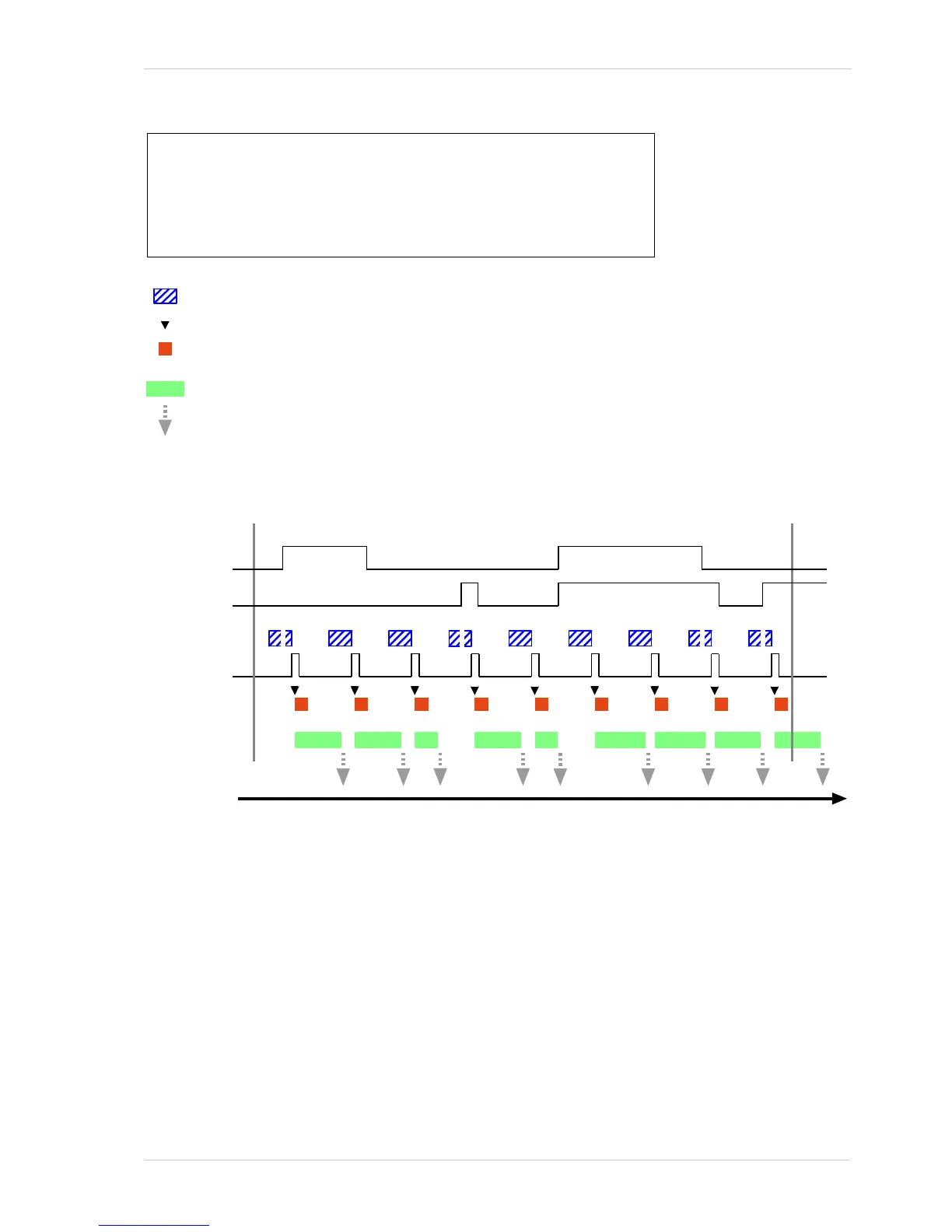

Fig. 80: Sequencer in Free Selection Mode
Operating the Sequencer Using Basler pylon
You can use the pylon API to set the parameters for operating the sequencer in Free Selection
sequence advance mode from within your application software.
The following code snippet illustrates enabling and disabling the sequencer. The example assumes
that sequence sets were previously configured and are currently available in the camera’s memory.
// Enable the sequencer feature
Camera.SequenceEnable.SetValue( true );
1 1 0 2 0 3 3
2 2
0
Time
Signal Applied to
Input Line 1
Frame Start
Trigger Signal
= frame exposure and readout
= frame transmission
Sequencer
Enabled
Sequencer
Disabled
Signal Applied to
Input Line 2
= camera is waiting for a frame start trigger
Use Case: Operation in free selection sequence advance mode.
Sequence sets are selected at will. The selection is controlled by the states
of the input lines.
Settings: Sequence Set Total Number = 4
Input line 1 (not set for invert) sets bit 0 of the sequence set address.
Input line 2 (not set for invert) sets bit 1of the sequence set address.
= camera selects a sequence set as the current sequence set
= current sequence set that is used for the image acquisition
(the sequence set index number is indicated)
