3.2 Display elements
3.2.1 B-TIMER display and operating elements
Low
A
B C
654321
%
h
1
3
7
6
2
5
4

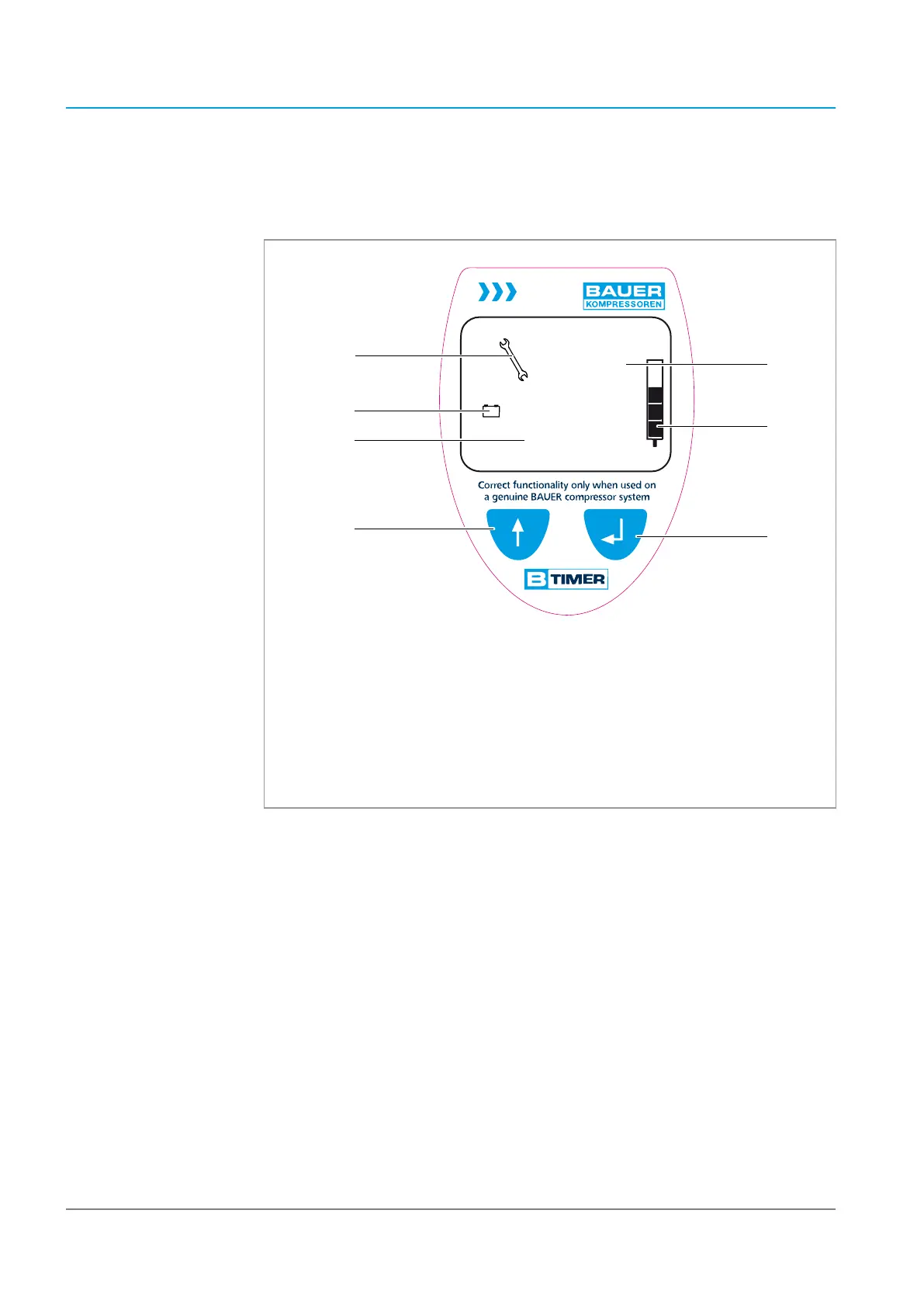

Fig. 8 Display and operating elements
1 Display of due maintenance 5 Input key
2 Display of low battery status 6 Display of cartridge saturation
3 Display of operating hours or car-
tridge number
7 Display of due maintenance type or
the setup menu
4 Selection key
