9.5 Maintenance activities - Lubricating oil system
1
3
2
MIN.
MAX.

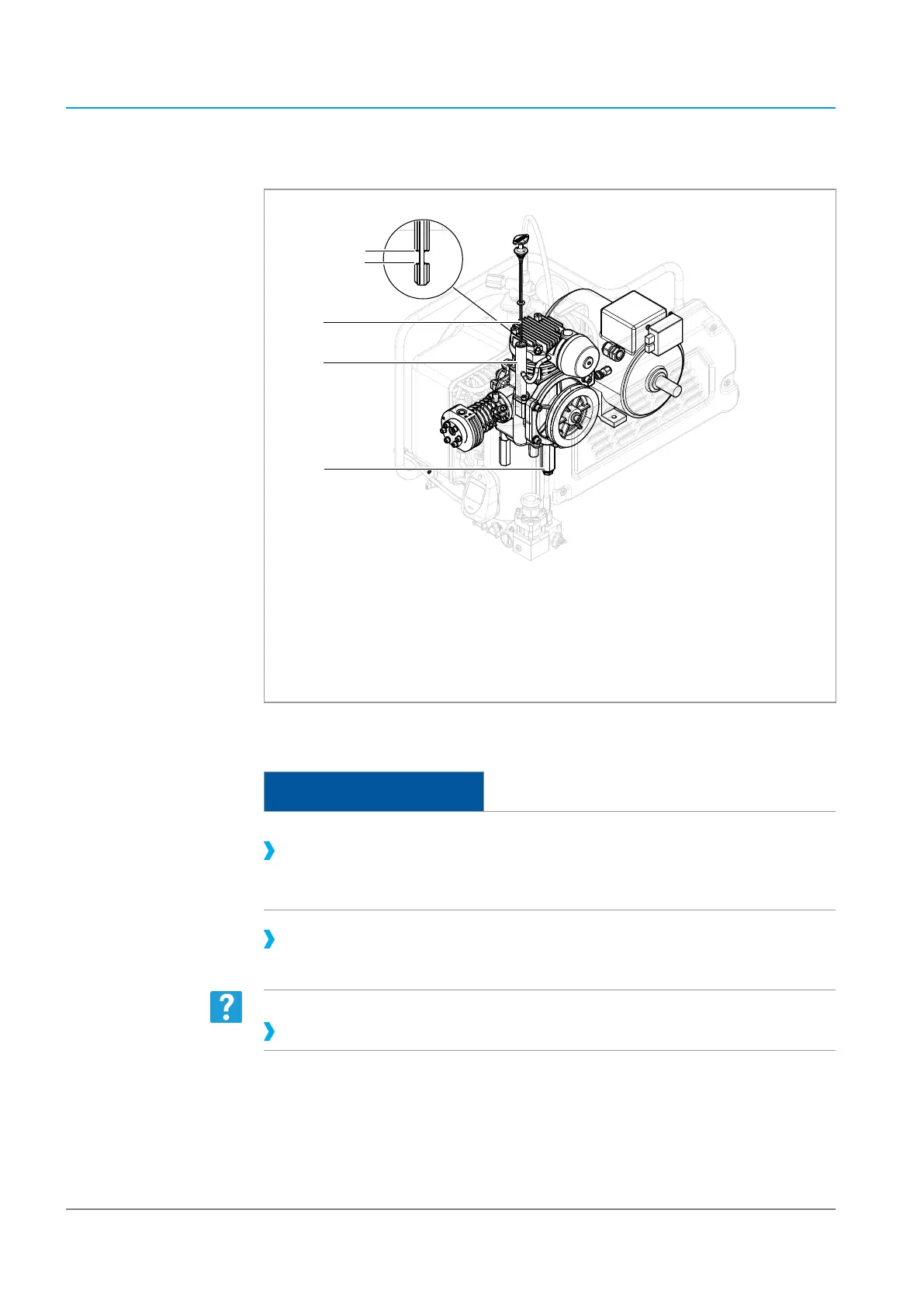

Fig. 21 Lubrication oil system, view from the rear
1 Oil dipstick 3 Oil drain screw
2 Oil filler spigot
9.5.1 Checking the oil level
NOTICE
Damage to unit due to incorrect oil level!
Ensure that the oil level does not undercut the minimum level or exceed the
maximum level, otherwise the compressor gets over-lubricated and the valves
carbonise.
Pull out the oil dipstick and check the oil level. The oil level must be within the
two markings on the oil dipstick.
Is the oil level under the minimum mark?
Refill oil, see Filling oil, Page 83.
