9.13.2 Adjusting the timer
Only competent personnel may set the timer. For more information, contact the
BAUER customer service department, see Chapter 1.2.7 Contact data BAUER
KOMPRESSOREN, Page 13.
NOTICE
Material damage due to unsuitable condensate drain intervals!
Excessively short condensate drain intervals lead to the flooding of the separator
and damage the downstream units.
In case of humid air and humid gas, set the condensate drain intervals accord-
ingly lower or get their settings configured.

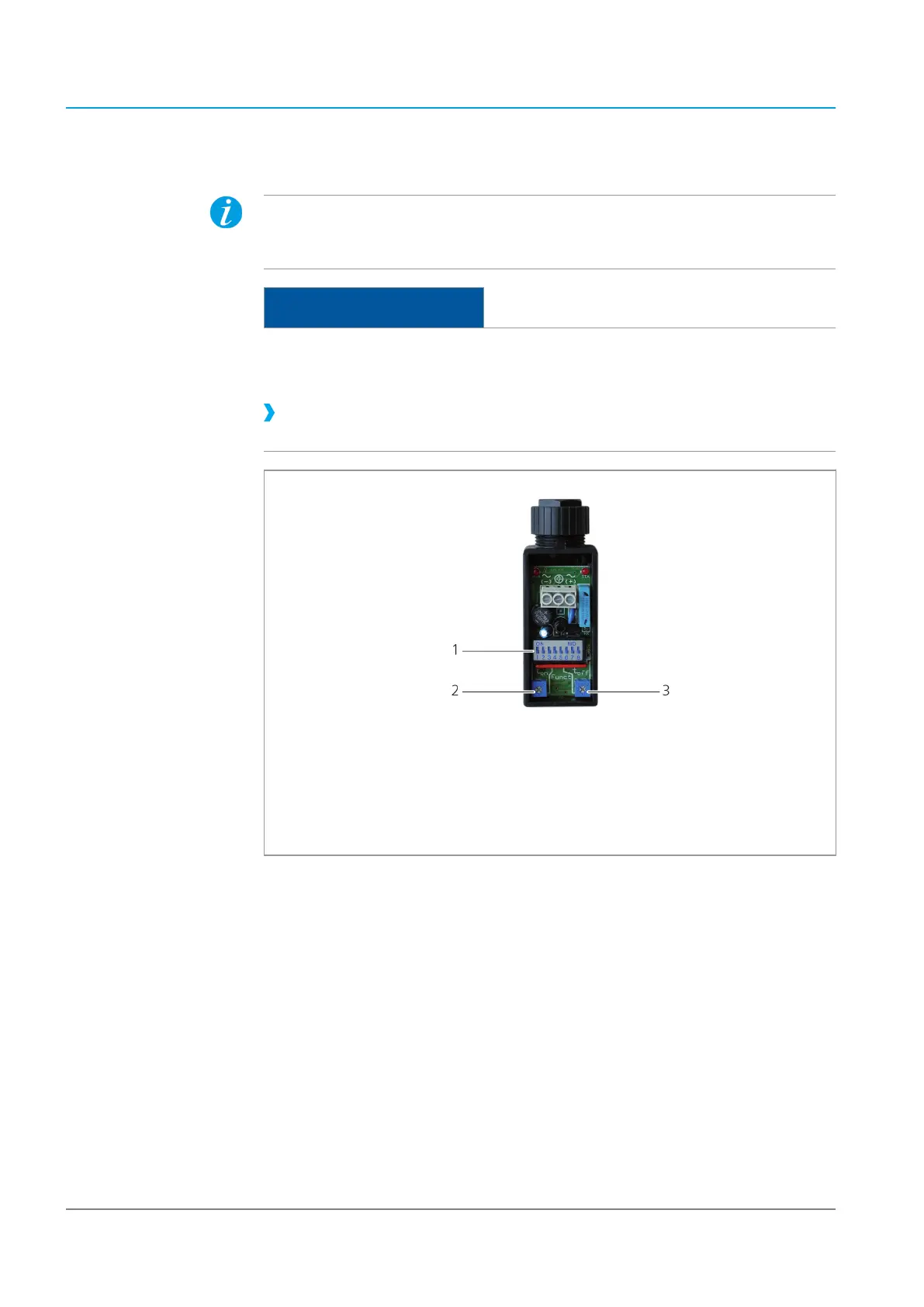

Fig. 25 Overview of the timer
1 DIP switch 3 Potentiometer t
off
2 Potentiometer t
on
For the default setting of the timer, see Chapter 4.1 Technical data about the com-
pressor unit, Page 39.
Set the timer as follows:
Voltage is turned off.
1.
Disengage the screw and remove the cover.
9 | Maintenance
