Filling the compressed air cylinders
WARNING
Danger of injuries due to the use of non-approved or damaged filling equip-
ment and compressed air cylinders!
Unsuitable or damaged material may explode or rupture under pressure. The use
of non-approved intermediate pieces is prohibited.
Ensure that filling equipment and compressed air cylinders are in a flawless
condition.
Ensure that the compressed air cylinder to be connected for the filling pres-
sure are approved; refer to the stamp on the shoulder of the cylinder.
Compressed air cylinders with an international filling connection can be connected
with the international bracket filler connection (order number 79375).

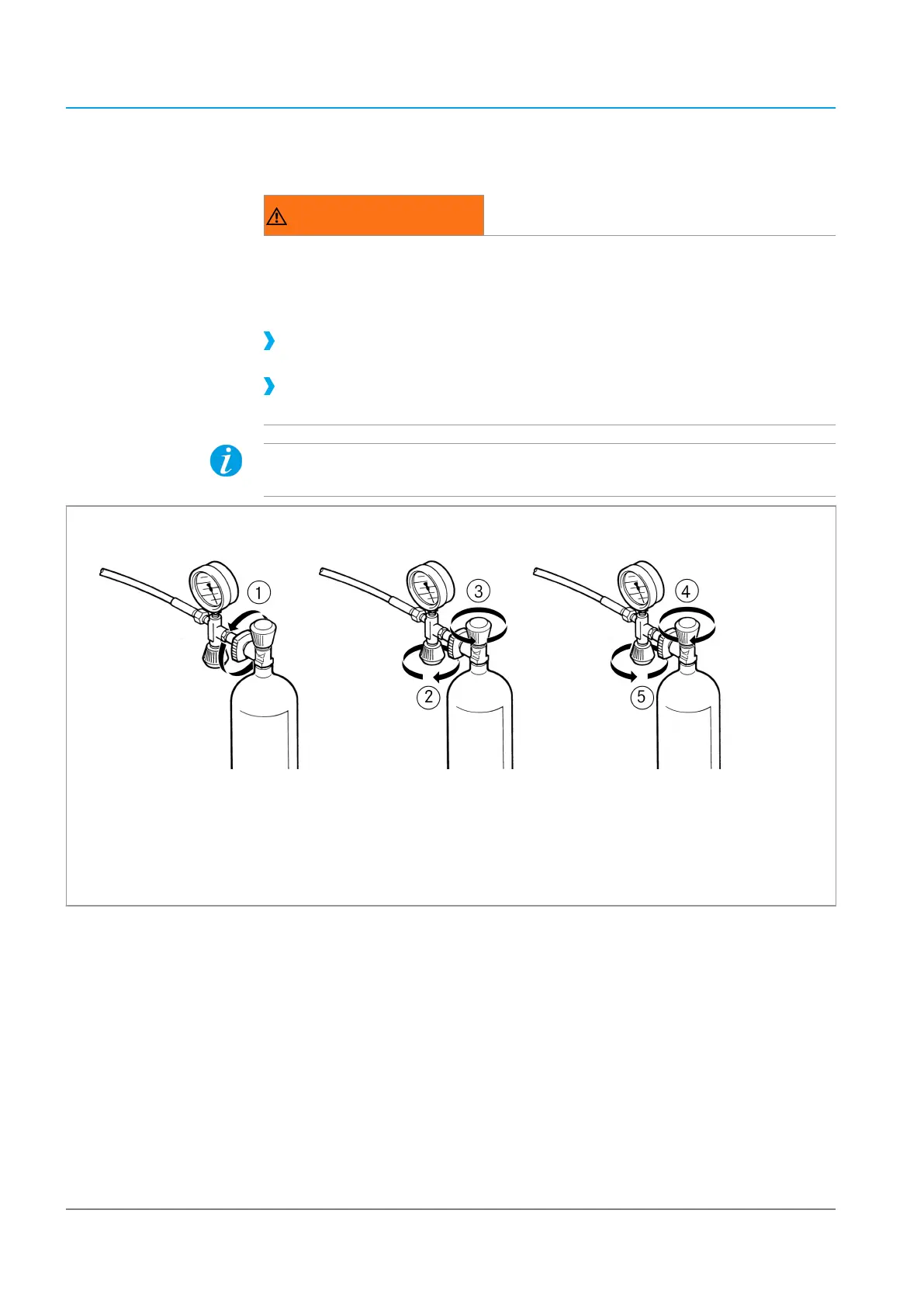

Fig. 18 Filling the compressed air cylinders
1 Connect compressed air cylinder 3 Open cylinder cock 5 Close filling cock
2 Open filling cock 4 Close cylinder cock
1.
Connect the compressed air cylinder to the cylinder connection.
2.
Open filling cock.
3.
Open cylinder cock.
Ä
The compressed air cylinder is filled.
4.
Close the cylinder cock once the final pressure is reached.
5.
Close filling cock.
