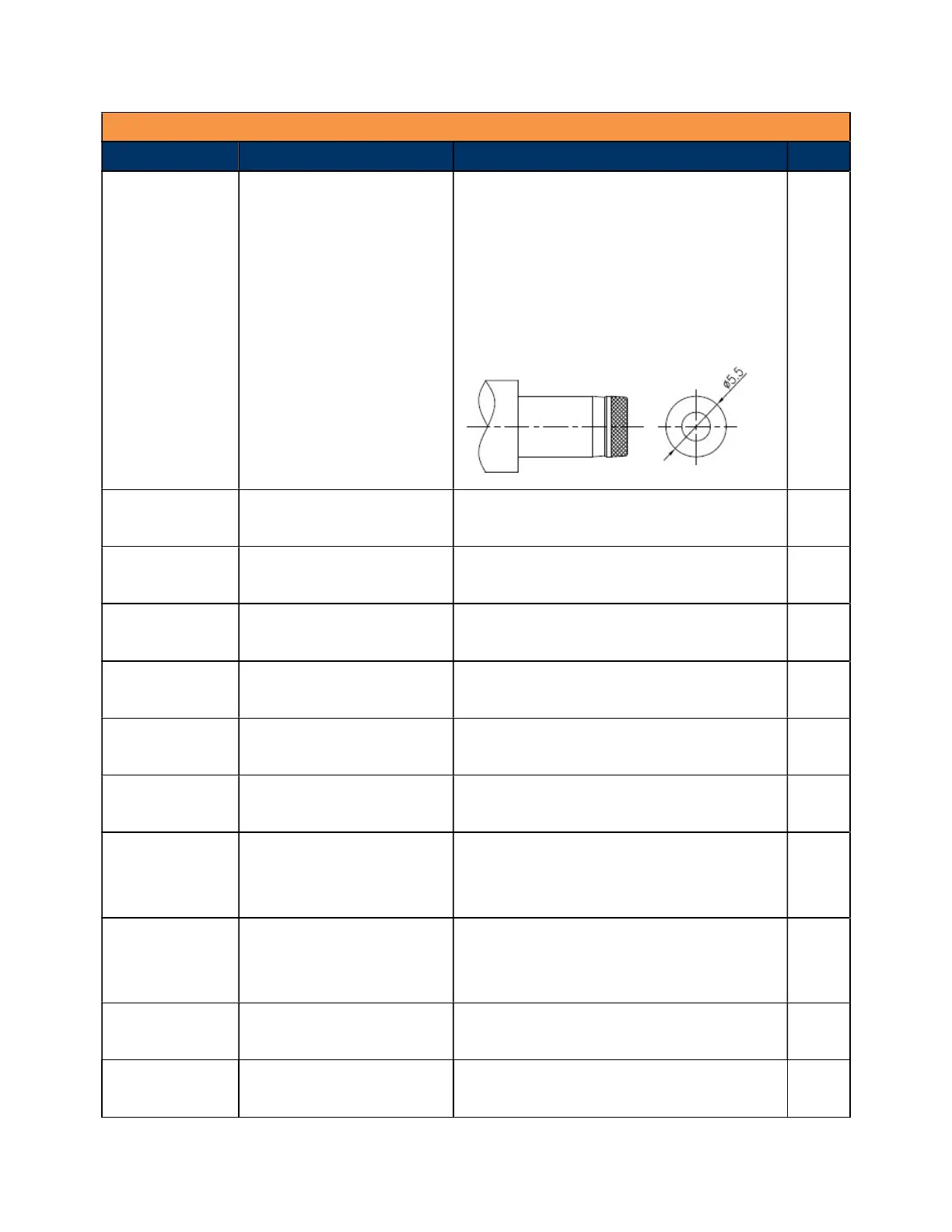

• 1.4.3.5 Back Panel Connectors (Rear I/O)
Label Function Note Page
DC_IN1 DC-in Connector This connector is for AC Adapter DC_IN
connection (12V~24V, 19V recommended,
8A max)
DC Mate Plug:
DIA. 5.5mm (Outer) x 2.5mm (Inner).
38
USB3_P910
(Red)
USB 3.2 Connectors
(Dual-Stacked, Type A)
These two USB ports are available for
connecting USB 3.2 devices.
38
DP2 Display Port
(Dual-Stacked)
Two Display Port Connectors.
DP++ (1.4a) supported.
38
DP1 Display Port
(Dual-Stacked)
Two Display Port Connectors.
DP++ (1.4a) supported.
38
USB_P7 USB 3.2 Connector
(Type C)
This USB port is available for connecting
USB 3.2 Type C devices.
38
USB34A
(Red)
USB 3.2 Connectors
(Dual-Stacked, Type A)
These two USB ports are available for
connecting USB 3.2 devices.
38
USB12A
(Red)
USB 3.2 Connectors
(Dual-Stacked, Type A)
These two USB ports are available for
connecting USB 3.2 devices.
38
LAN2
(Intel i225-LM)
2.5G LAN Connector This port allows 2.5G connection to a
Local Area Network (LAN) through a
network hub.
39
LAN1
(Intel i225-LM)
2.5G LAN Connector This port allows 2.5G connection to a
Local Area Network (LAN) through a
network hub.
39
AUDIO (Pink)
(MIC-IN)
Microphone Port This port connects a microphone. 39
AUDIO (Green)
(Line-Out)
Line-Out Port This port connects a headphone or
speaker.
39
