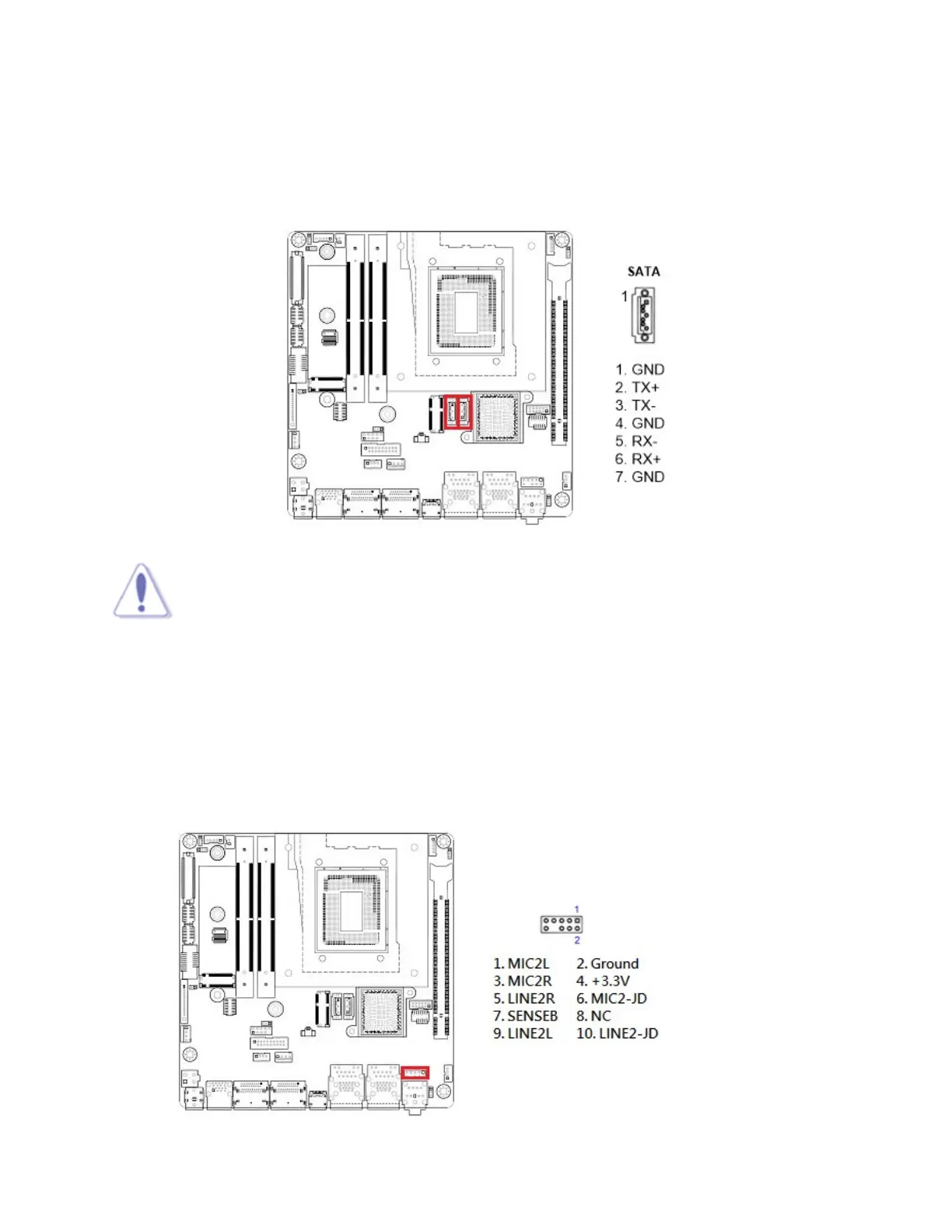

1.9.4 Serial ATA 3.0 Connectors: SATA1, SATA2
SATA ports “SATA1”, “SATA2” support SATA3.0 standard.
Do not fold the Serial ATA cable into 90-degree angle. Otherwise, data loss may occur
during data transmission.
1.9.5 Front Panel Audio Connector: FP_AUDIO1
This connector is prepared for a chassis-mounted front panel audio I/O module that supports
HD Audio standard. Connect one end of the front panel audio I/O module cable to this
connector. “F_AUDIO” volume can be adjusted through OS volume control.
