MX680RD User’s Manual
1.6 System Memory
1.6.1 Overview
The mainboard comes with two 262-pin Double Data Rate 5 (DDR5) Dual Inline Memory
Modules (SODIMM) sockets.
DDR5 memory brings several key performance and power gains to the table, as well as new
design challenges. From the JEDEC JESD79-5 DDR5 standard. DDR5 specification has
significant improvement in capacity, speed, and voltage. Structure-wise, the power
management IC (PMIC) is moved onto the DIMM, reducing redundant power management
circuitry on the mainboard for unused DIMM slots in previous generations.

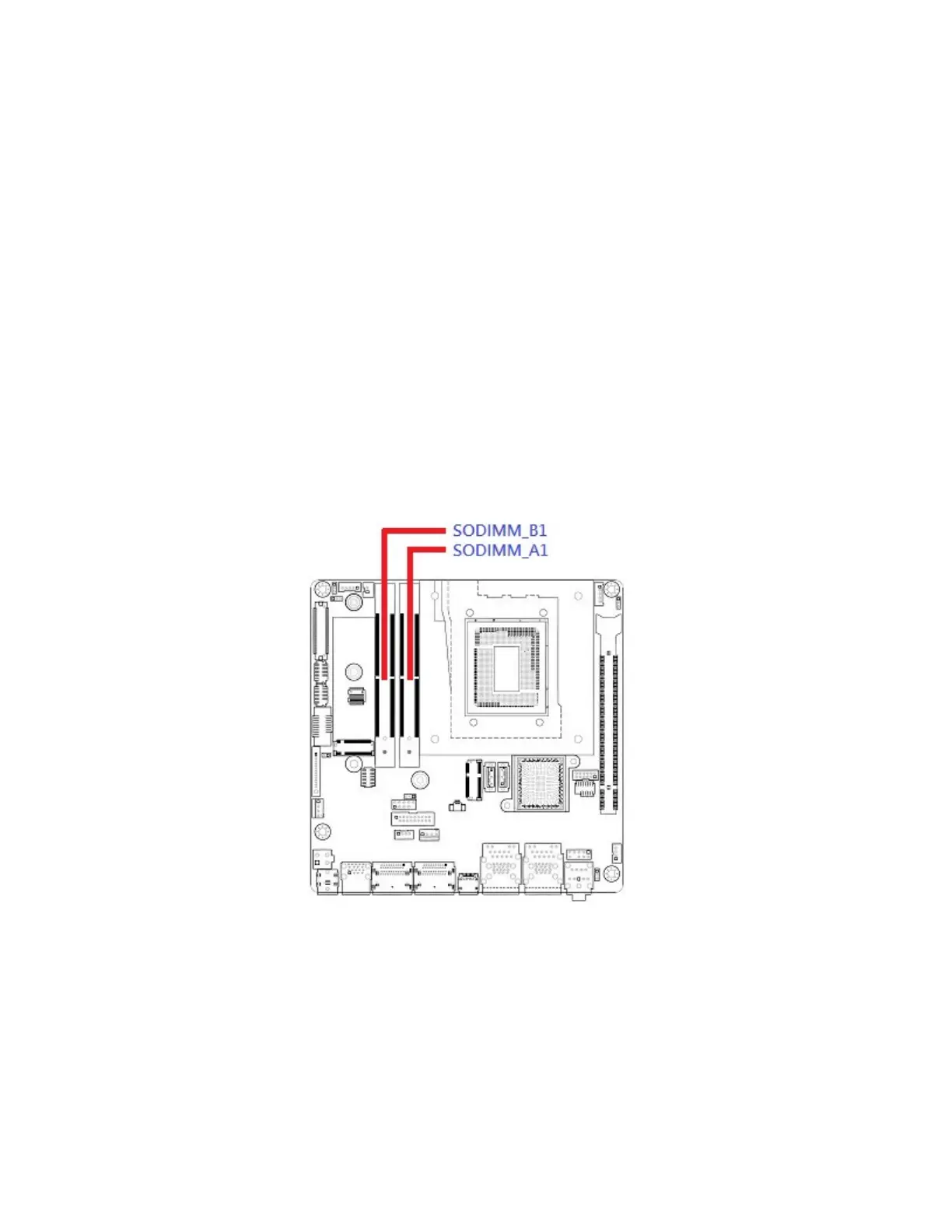

The following figure illustrates the location of the sockets:
