MX680RD User’s Manual

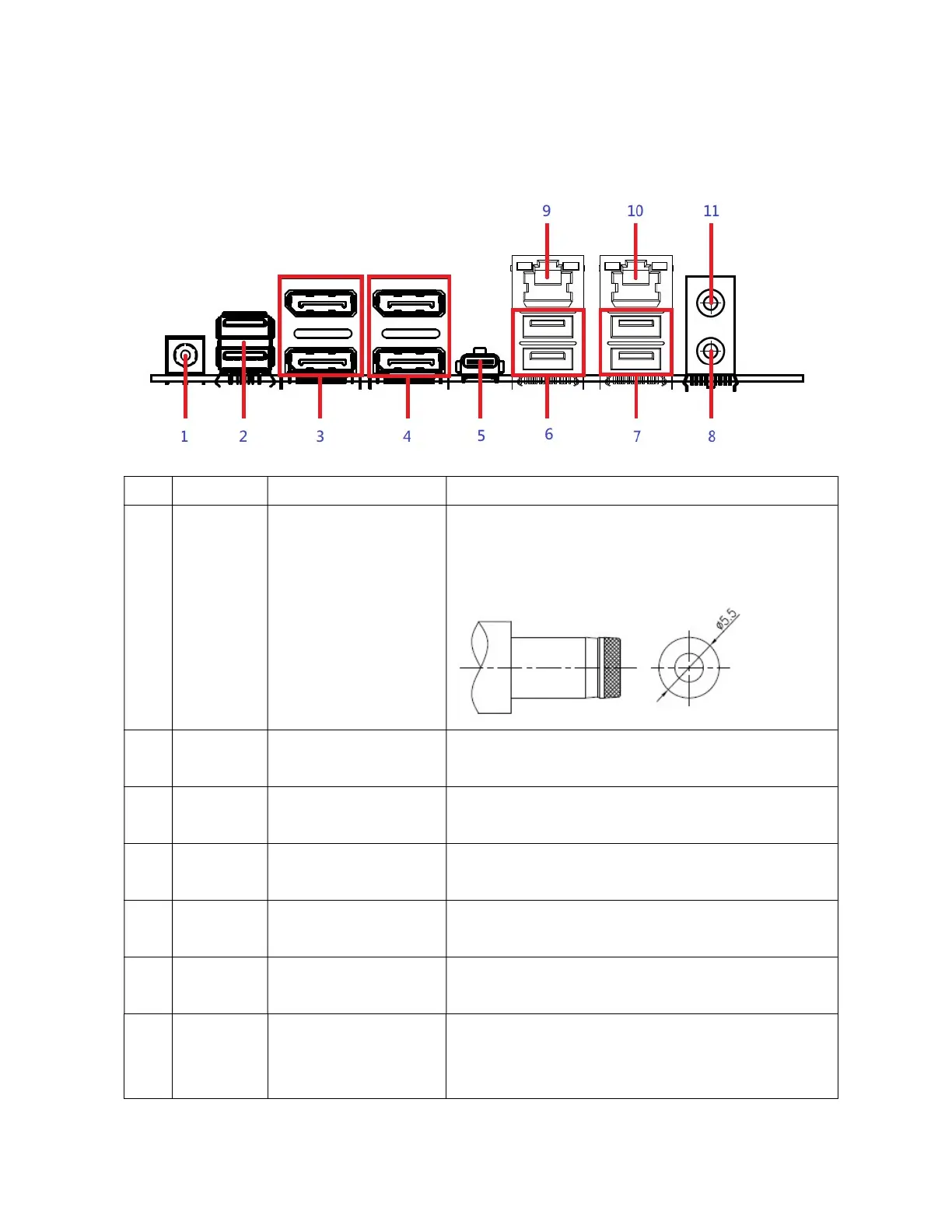

1.8 Back Panel (Rear I/O Ports)
1.8.1 Back Panel Connectors
Item Name Function Description
1 DC_IN DC-in connector The connector is for DC_in (12V~24V)
(19V recommended/ 8A max)
DC Mate Plug: DIA. 5.5mm (Outer) x 2.5mm (Inner).
2 USB3_P910
(Red)
USB 3.2 Connectors
(Dual-Stacked, Type A)
These two Universal Serial Bus (USB) ports are
available for connecting USB 3.2 devices.
3 DP2 Display Port
(Dual-Stacked)
Two Display Port Connectors
(DP++, 1.4a supported)
4 DP1 Display Port
(Dual-Stacked)
Two Display Port Connectors
(DP++, 1.4a supported)
5 USB_P7 USB 3.2 Connector
(Type C)
This Universal Serial Bus (USB) port is available for
connecting USB 3.2 Type C devices.
6 USB34A
(Red)
USB 3.2 Connectors
(Dual-Stacked, Type A)
These two Universal Serial Bus (USB) ports are
available for connecting USB 3.2 devices.
7 USB12A
(Red)
USB 3.2 Connectors
(Dual-Stacked, Type A)
These two Universal Serial Bus (USB) ports are availa
ble for connecting USB 3.2 devices.
