MX680RD User’s Manual
39

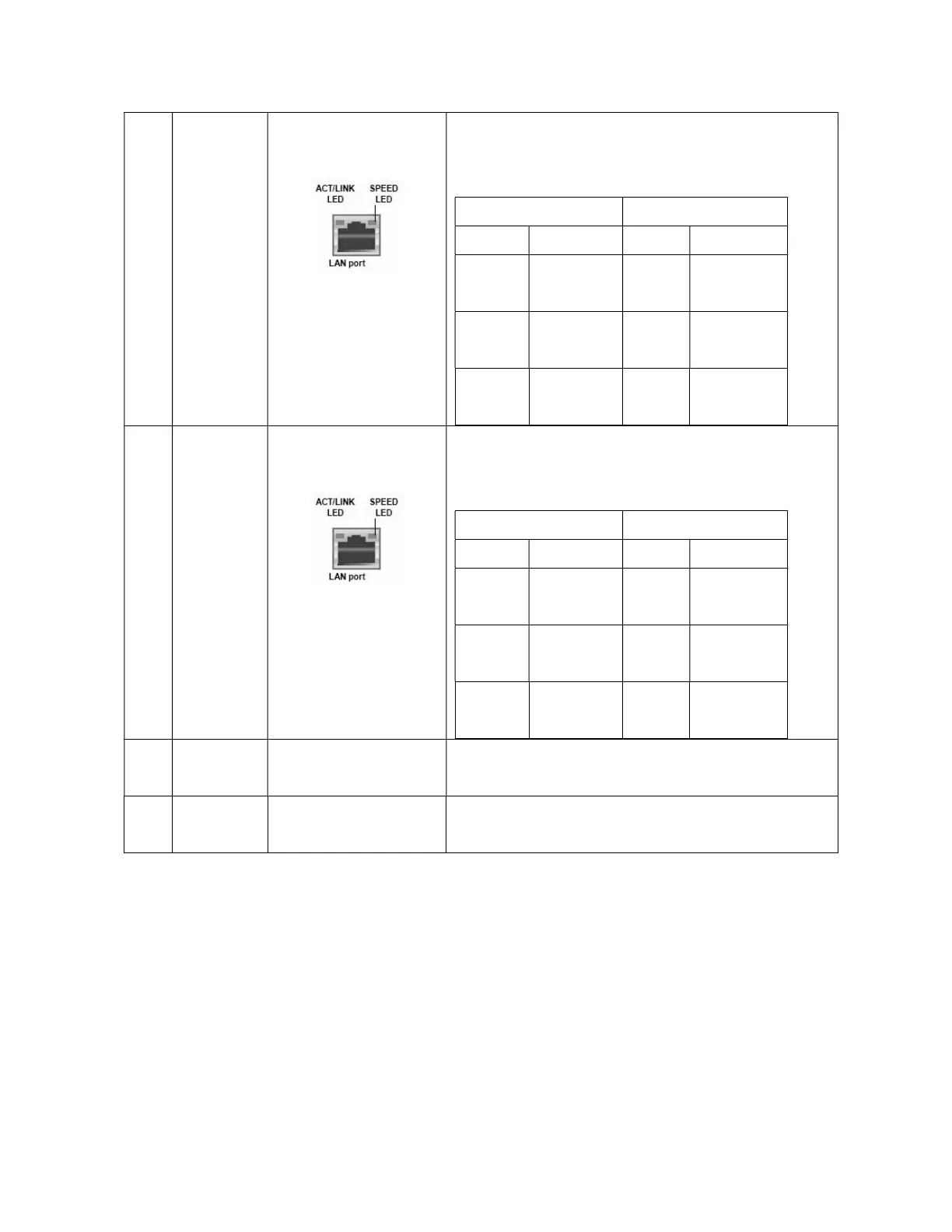

9 LAN2 2.5G LAN
(RJ-45) Connectors
This port allows 2.5G connection to a Local Area
Network (LAN) through a network hub. Refer to the
table below for the LAN port LED indications.
ACT/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10/100Mbps
connection
Orange Linked Green 1Gbps
connection
Blinking Data
activity
Orange 2.5Gbps
connection
10 LAN1 2.5G LAN
(RJ-45) Connectors
This port allows 2.5G connection to a Local Area
Network (LAN) through a network hub. Refer to the
table below for the LAN port LED indications.
ACT/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10/100Mbps
connection
Orange Linked Green 1Gbps
connection
Blinking Data
activity
Orange 2.5Gbps
connection
8 AUDIO
(Pink)
Microphone port This port connects a microphone.
11 AUDIO
(Green)
Line-out port This port connects a headphone or a speaker.
