MX680RD User’s Manual
53
1.11.2 Setup an Expansion Card
After installing the expansion card, configure it by adjusting the software settings.
1. Turn on the system and change the BIOS settings if necessary. See Chapter 2 for
information on BIOS setup.
2. Assign an IRQ to the card if necessary.
3. Install the software drivers for the expansion card (provided by expansion card
manufacturer).

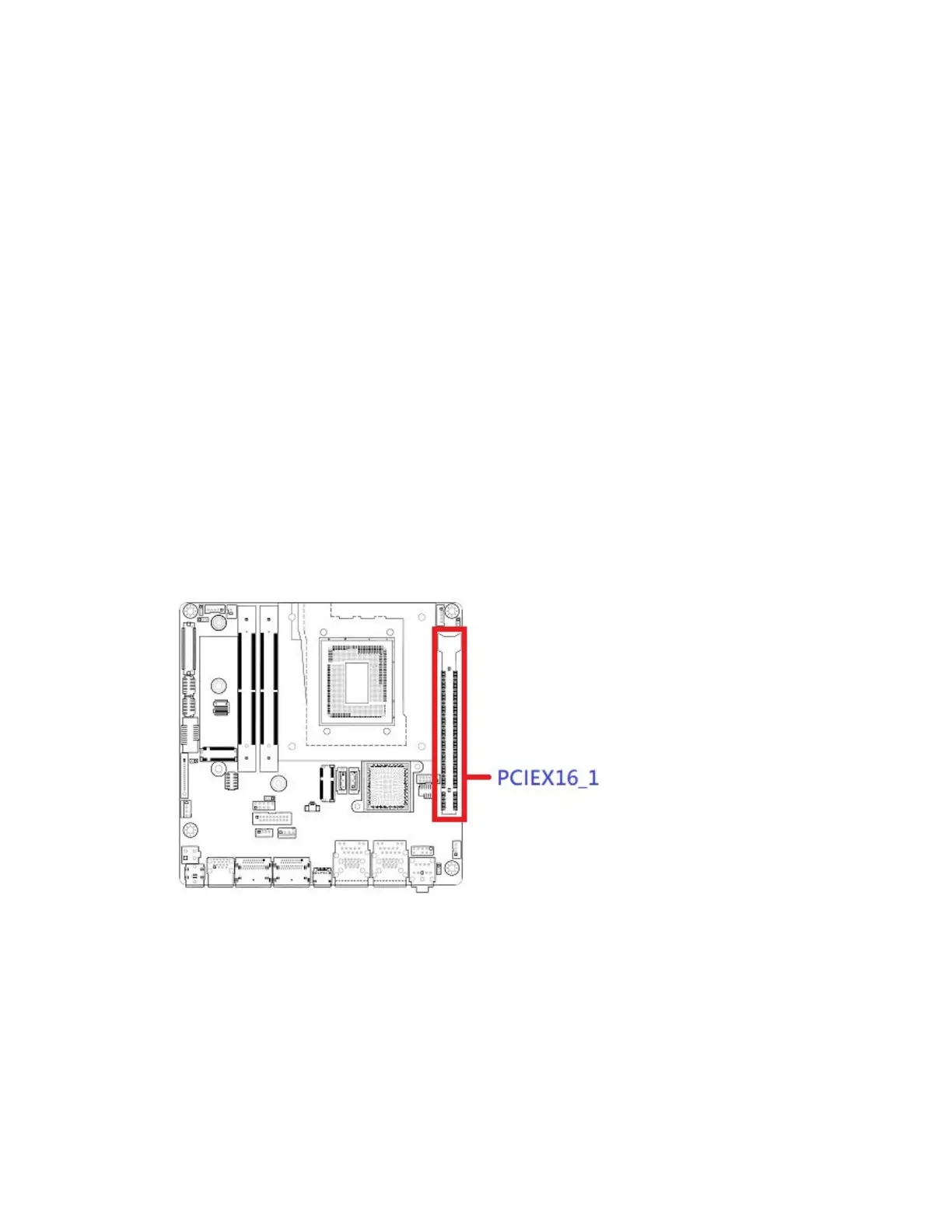

1.11.3 PCIe x16 Slot: PCIEX16_1
The PCIe x16 slot supports PCIe x1, PCIe x4, PCIe x16 cards (e.g. PCIe LAN cards, or some
of the PCIe x16 video cards).
