MX680RD User’s Manual

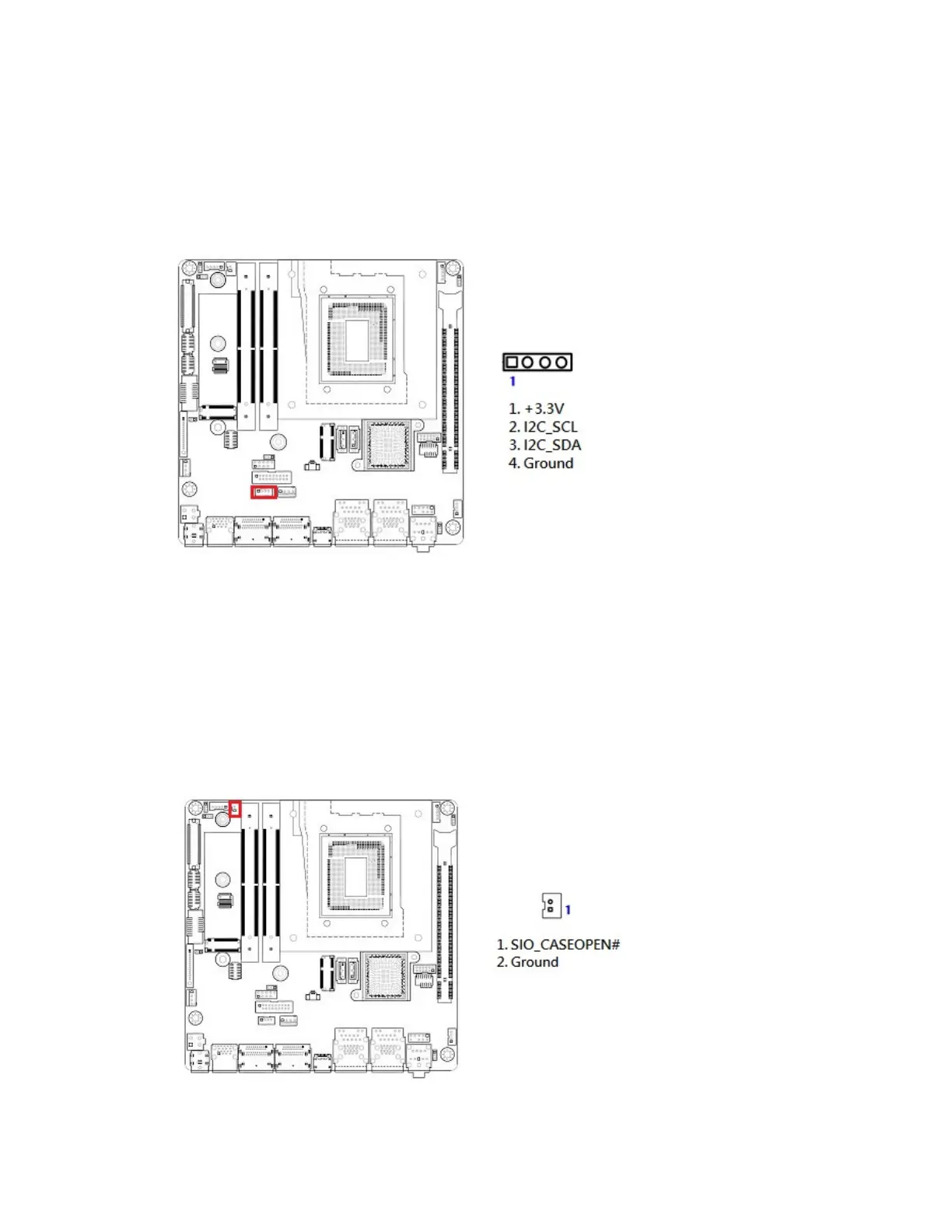

1.9.14 I2C Header: I2C1

This header provides I2C signal connections.

1.9.15 Chassis Intrusion Header: JCASE1

This 2-pins header provides chassis intrusion warning connection.
