MX680RD User’s Manual

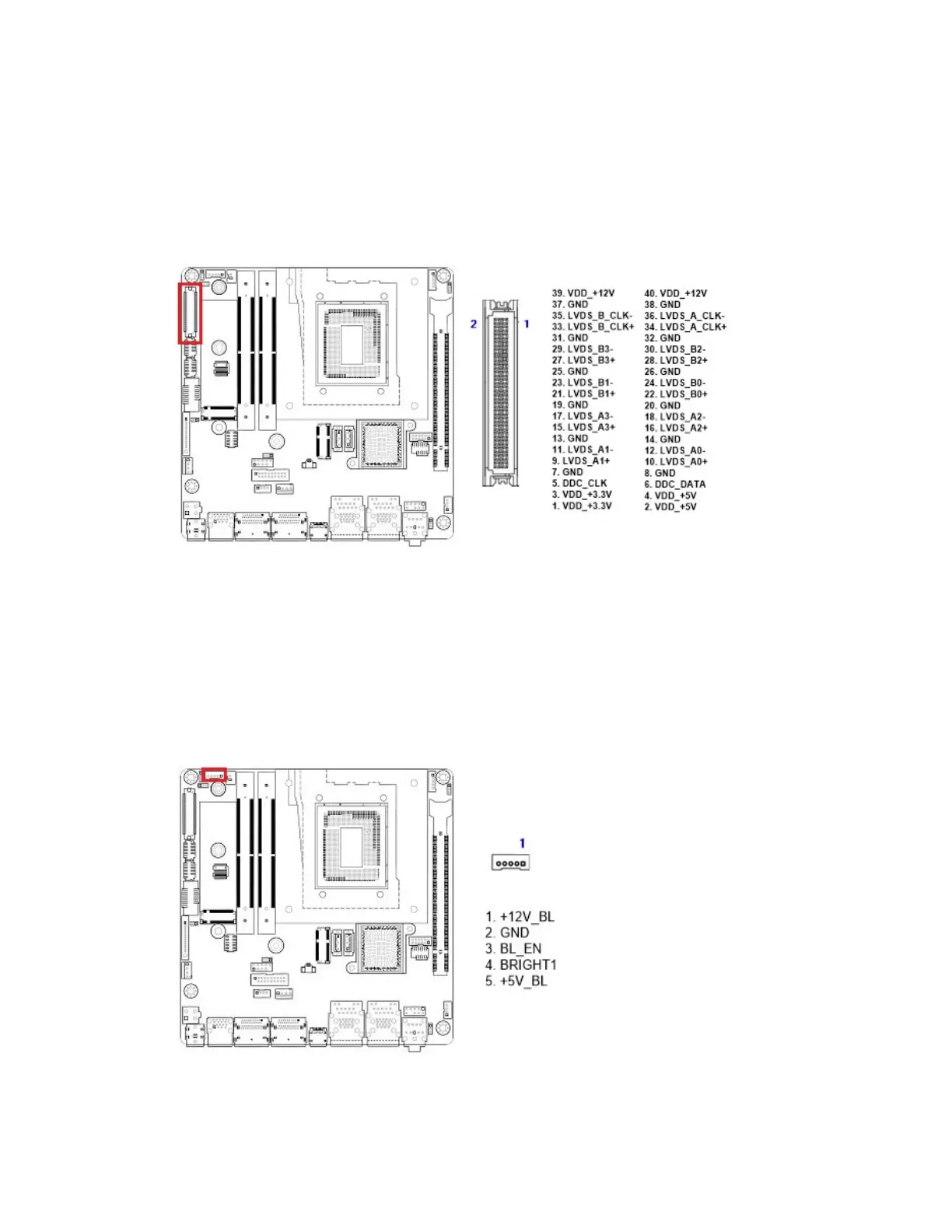

1.9.10 LVDS Header: LVDS1

This header provides connection to LVDS type panels.

1.9.11 LVDS Panel Backlight Connector: JBKL1

This header provides connection for LVDS panel backlight control connections.
