BDCOM S6508 Switch Hardware Installation Guide

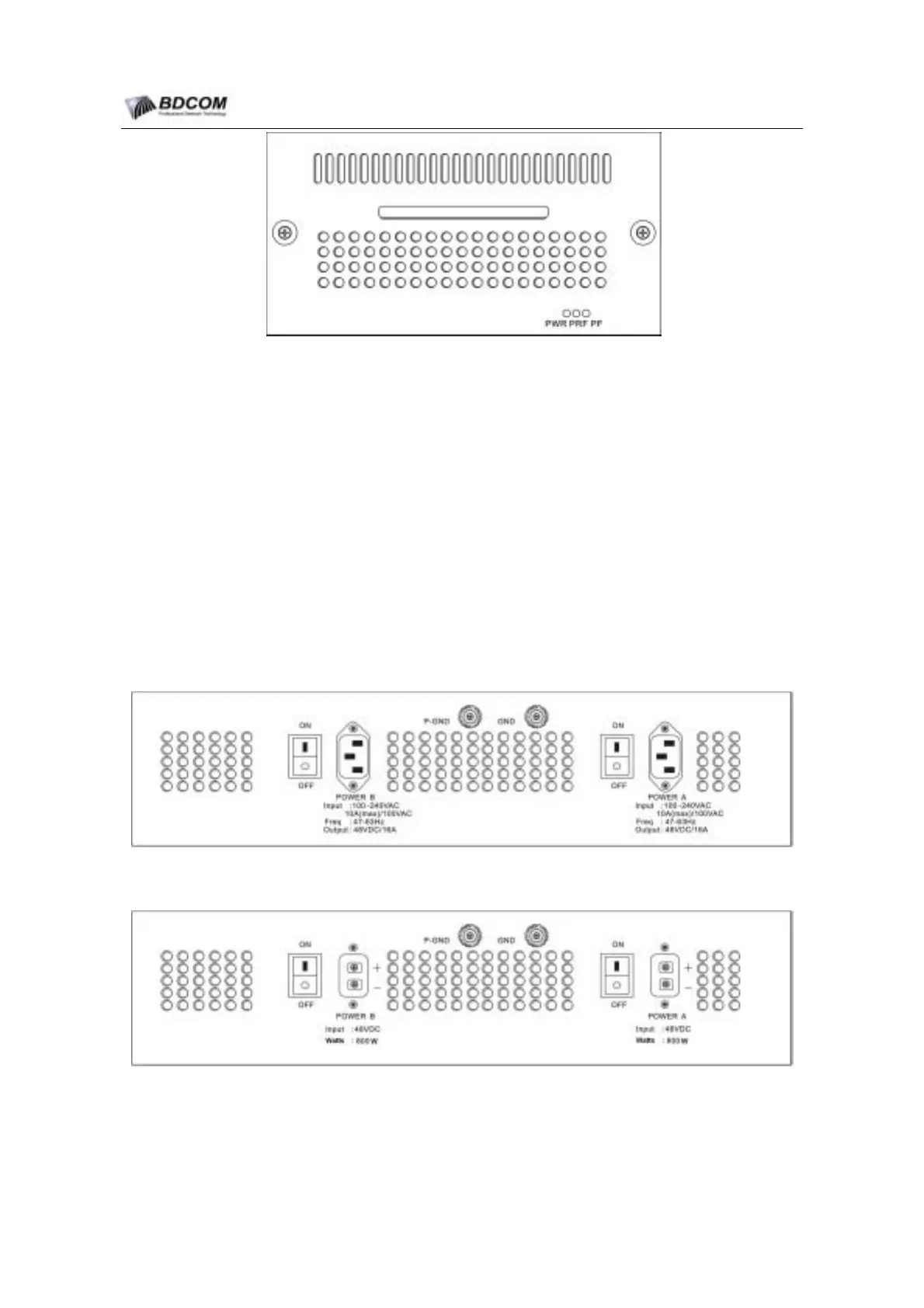

Figure 1-6 LS65-PWR-AC-800 View
There are 3 Type S6508 Chassis:Double-AC Power Chassis; Double-DC Power
Chassis; AC
＋
DC Power Chassis. For difference environment, user can choose the
type S6508 chassis. The following describes the difference between the 3 type
chassis.
Double-AC Power Chassis: the chassis’s Slot PowerA and Slot PowerB only Support
LS65-PWR-AC-800 module.
Double-DC Power Chassis:the chassis’s Slot PowerA and Slot PowerB only Support
LS65-PWR-DC-800 module.
AC
＋
DC Power Chassis: the chassis’s Slot PowerA only Support LS65-PWR-AC-800
module; the chassis’s Slot PowerB only Support LS65-PWR-AC-800 module.
3 type chassis rear view also are different.The following Figure show the difference.
Figure 1-7 Double-AC Power Chassis Rear View
Figure 1-8 Double-DC Power Chassis Rear View
