BDCOM S6508 Switch Hardware Installation Guide
LS65-32FE-TX
LS65-4GE-TX/SFP
LS65-4GE-SFP
Slot 1-4 LPU Slot
LS65-16FE-SFP
Slot 5-6 MSU Slot LS6508-MSU
LS65-32FE-TX
LS65-4GE-TX/SFP
LS65-4GE-SFP
Slot 7-10 LPU Slot
LS65-16FE-SFP
The system module’s height is 370mm, depth is 370mm.
1.4.4 Power Supply
S6508 support AC-Power Input or DC-Power Input.There are 2 type Power supply
module(AC-Power supply module and DC-Power supply module ) are supported in
S6508.
1. DC-Power Supply
When you want to use DC Supply input, you can use LS65-PWR-DC-800 module.The
DC-Power input must be –48V. LS65-PWR-DC-800 max output is 800W.

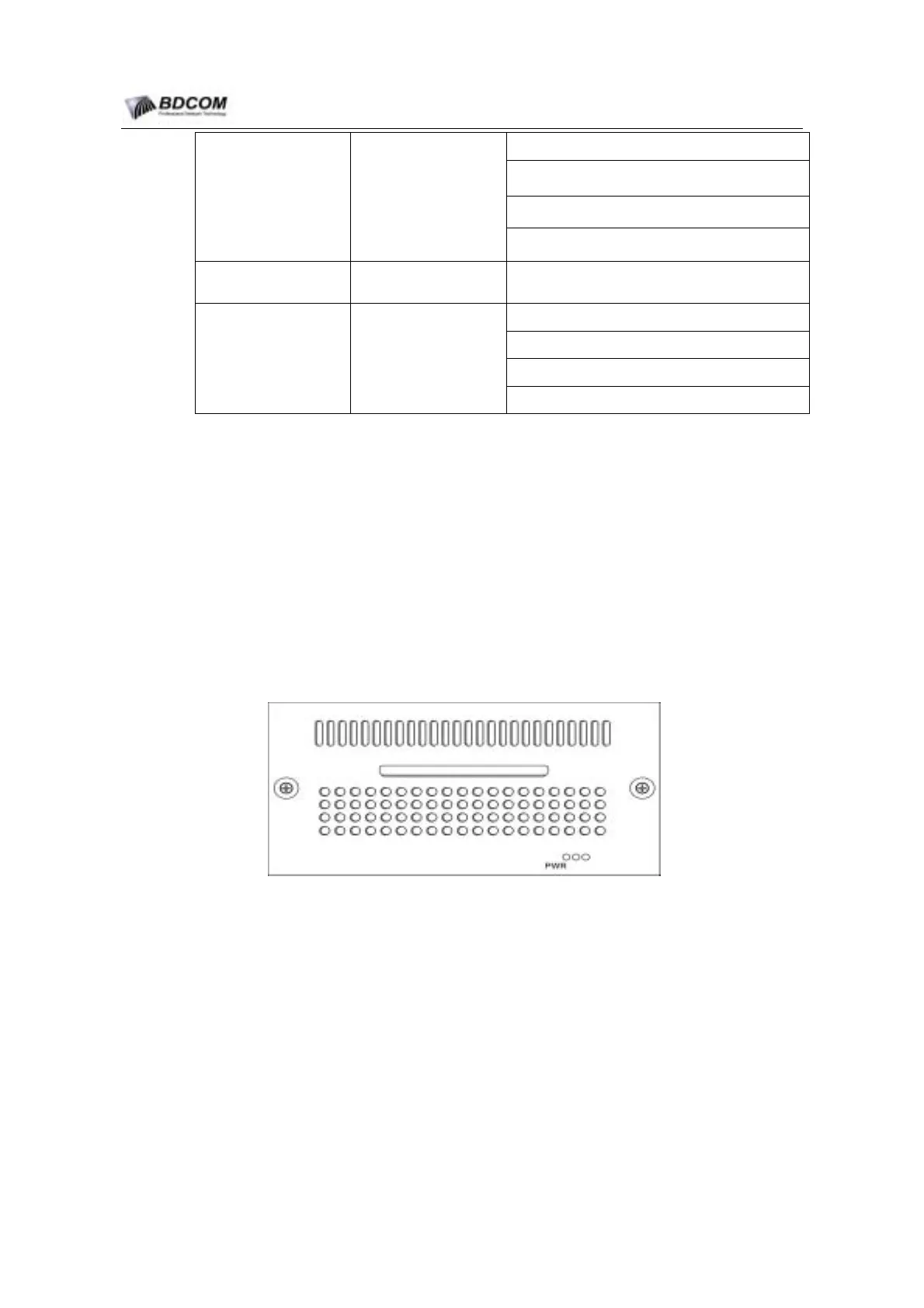

Figure 1-5 LS65-PWR-DC-800 View
2. AC-Power Supply
When you want to use AC-Power input,you can use LS65-PWR-AC-800 module. The
AC-Power input is 100
～
240V/AC; the AC-Power input frequency is 47Hz
～
63Hz.LS65-PWR-AC-800 max output is 800W.
