BDCOM S6508 Switch Hardware Installation Guide
 Uniform user management.
 Agile charge method.
 User bandwidth and priority control base on RADIUS.
 Use standard switch struct, can expand to other non-ethernet module.
1.3 S6508 Switch View
S6508 Switch is a 10-slot vertical chassis. Figure 1-1 shows the S6508 Switch chassis.

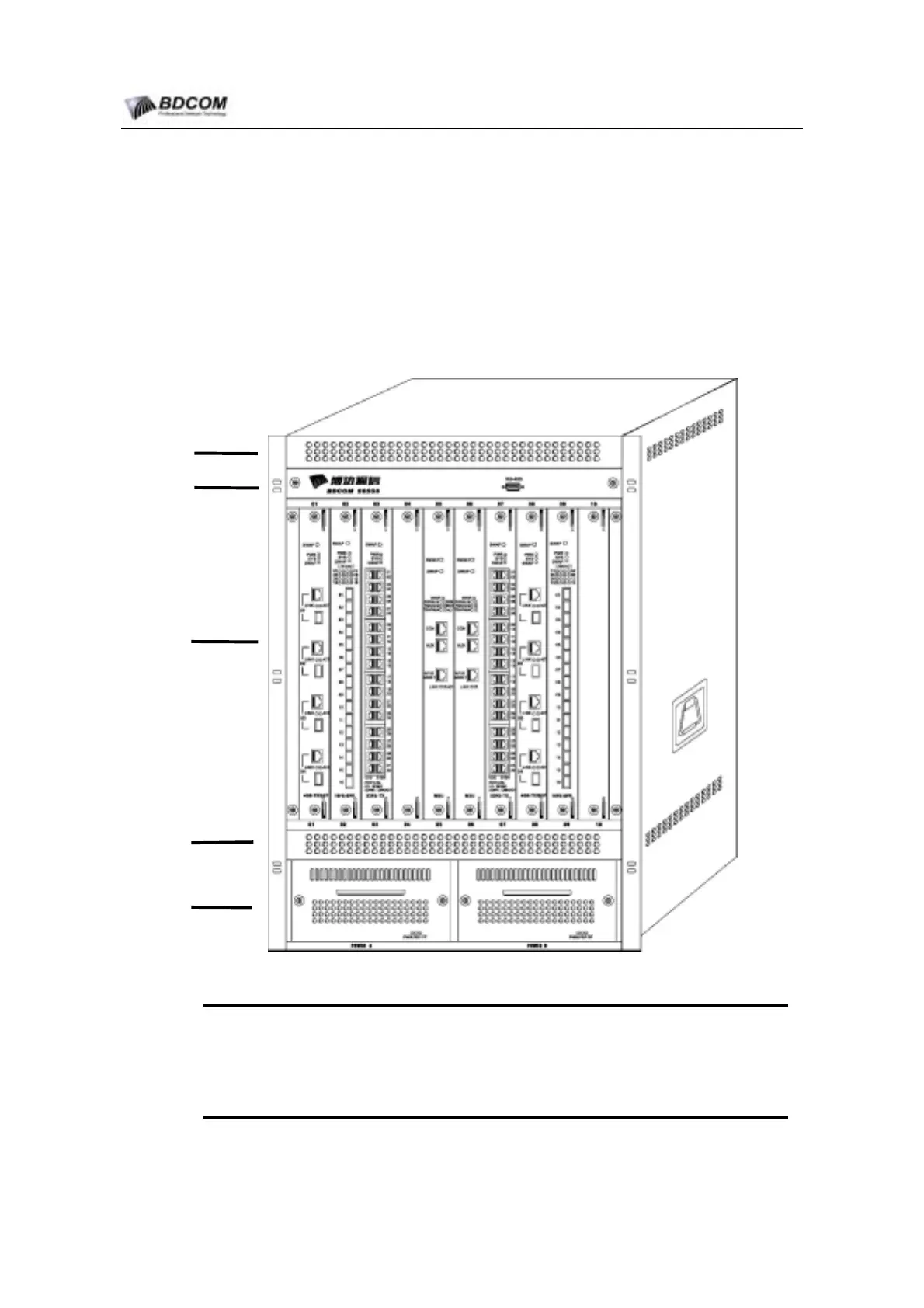

Figure 1-1 BDCOM S6508 Switch View
(1)Airflow exhaust: the system module air exhaust.
(2)Fan Assembly: the system fan assembly, 6 fans support.
(3)system module slot: 10 system module slots, support 10 system module.
(3)Airflow intake: the system module air inlet.
(4)Power supply slot: support AC-Power module or DC-Power module.
