BDCOM S6508 Switch Hardware Installation Guide

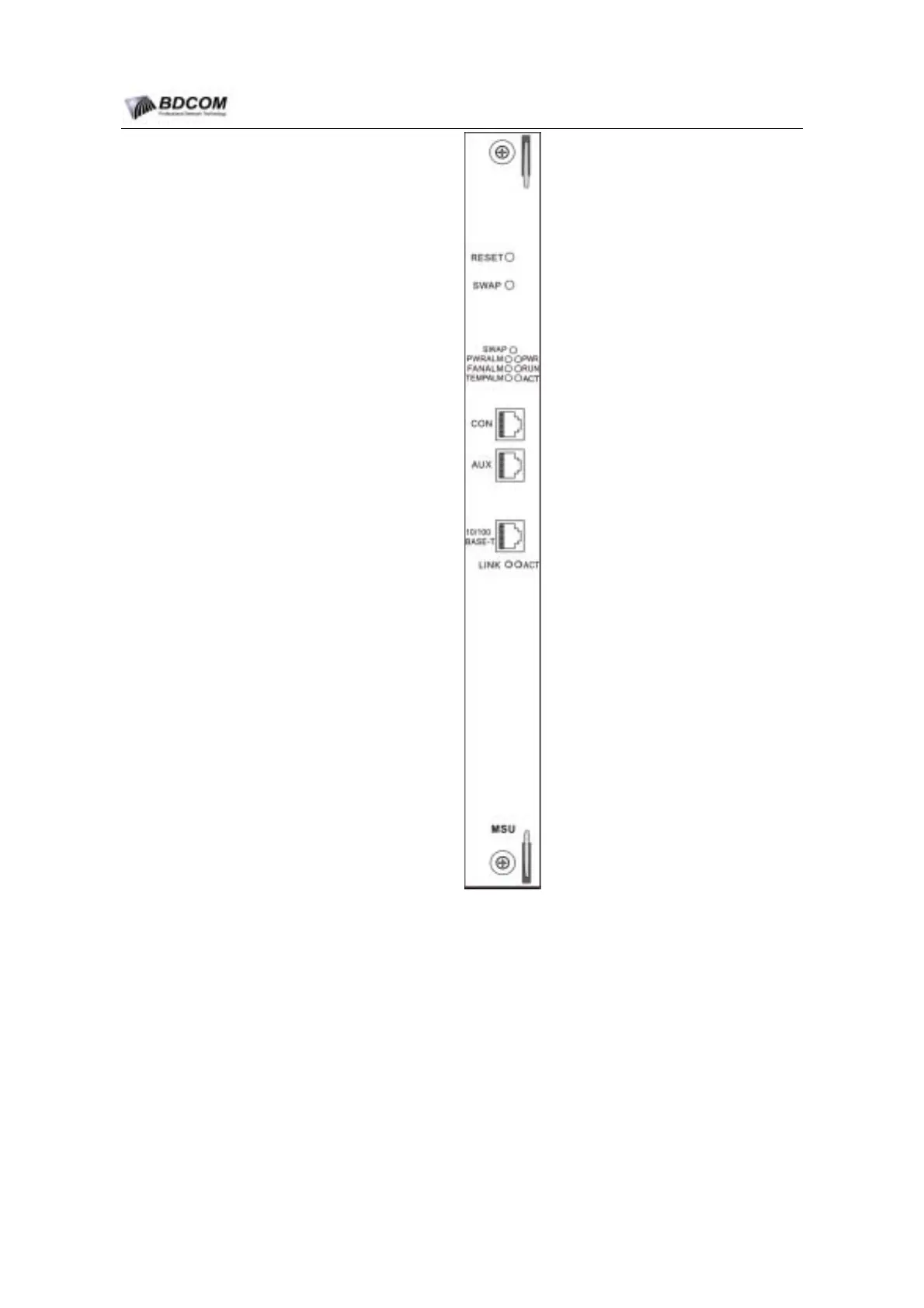

Figure 1-11 LS6508-MSU front view
1. Port
LS6508-MSU module provides three Port: Console port, AUX port, 10/100Base-T
Ethernet port.
2. LED
There are 7 LEDs on the LS6508-MSU front panel.Table1-2 decribes the LEDs means.
Table 1-2 LS6508-MSU module LEDs Decription
