Bender RCMS460 User Manual

Installation and connection
28
RCMS460-490_D00067_03_M_XXEN/12.2017
4.4.3 Connection of W…, WR…, WS… series measuring current
transformers

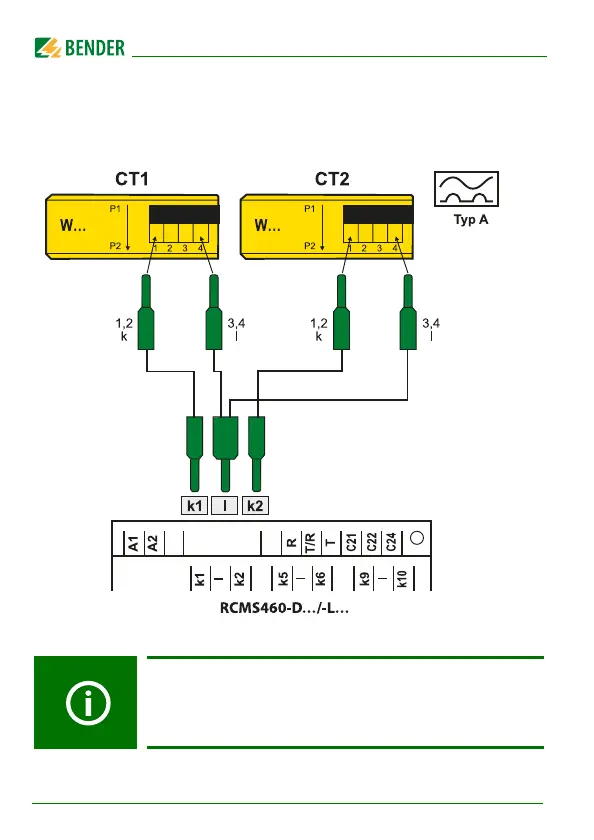

Example: Connection W… series measuring current transformers
The terminals 1/2 as well as the terminals 3/4 are bridged
internally.
The connections k and l at the residual current monitor must
not be interchanged.
