Installation and connection
32
RCMS460-490_D00067_03_M_XXEN/12.2017
Legend to W…AB series measuring current transformer
connection

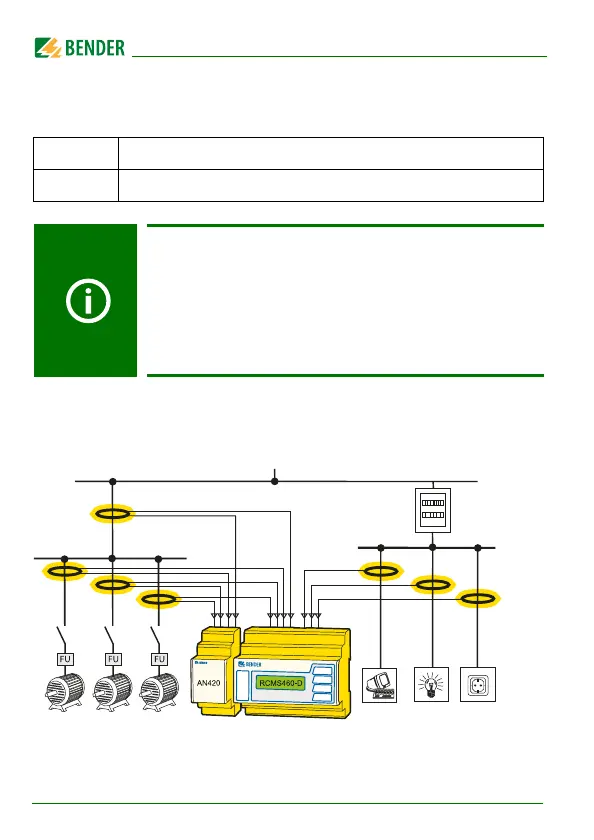

4.4.6 Example for a system design – minimum system consisting
of an RCMS460-D and 12 measuring points
W…F Flexible WF… series measuring current transformers
RCC420 Signal converter
Commercial measuring current transformers are not
suitable for direct connection to the RCMS system and must
not be used.
Additional information is available in our "Transformer
installation" manual.
Only if these notes are observed will you obtain a true
measurement result.
Measuring current transformer
AC/DC sensitive (0...2000 Hz)
Measuring current transformer
pulsed DC sensitive (42...2000 Hz)
series
W...AB
series
W...AB
series
W...AB
series
W...AB
series
W..., WR...,
WS..., WF...
series
W..., WR...,
WS..., WF...
series
W..., WR...,
WS...,
distribution
board
TN-S-System
