Operation
38
RCMS460-490_D00067_03_M_XXEN/12.2017

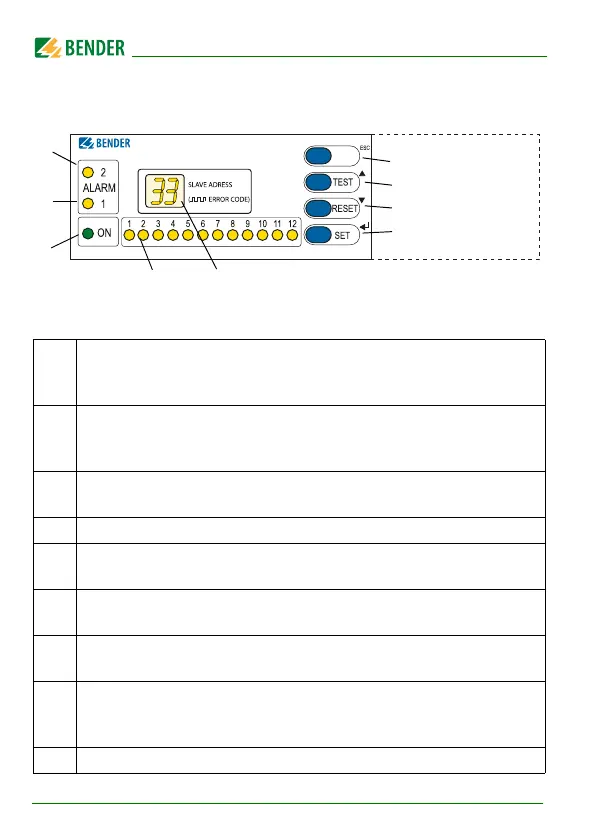

6.2 Operating and display elements RCMS…-L
1 The "ALARM 2“ LED lights up if the measured value falls below or
exceeds the "Alarm" response value in a measuring channel or until
an error is indicated by the digital input.
2 The "ALARM 1" LED lights up if the measured value falls below or
exceeds the "prewarning" response value in a measuring channel or
in case of a device error.
3 LED "ON“ lights up when the device is switched on and flashes until
the device is ready for operation during switching on.
4 ESC button: to exit the menu function without changing parameters
5 "TEST" button: to call up automatic test
Up button: to change parameters, scroll
6 "RESET" button: to acknowledge alarm and fault messages
Down button: to change parameters, scroll
7 "SET" button: to set the BMS address
"ENTER" button: to confirm parameter changes
8 Alarm-LEDs "1…12“ light up if an insulation fault has been detected
in the relevant measuring channel
or flash if there is a fault with the measuring current transformer.
9 Digital display for device address and error codes.
LINETRAXX®
RCMS460-L
RCMS490-L
