Installation and connection
33
RCMS460-490_D00067_03_M_XXEN/12.2017

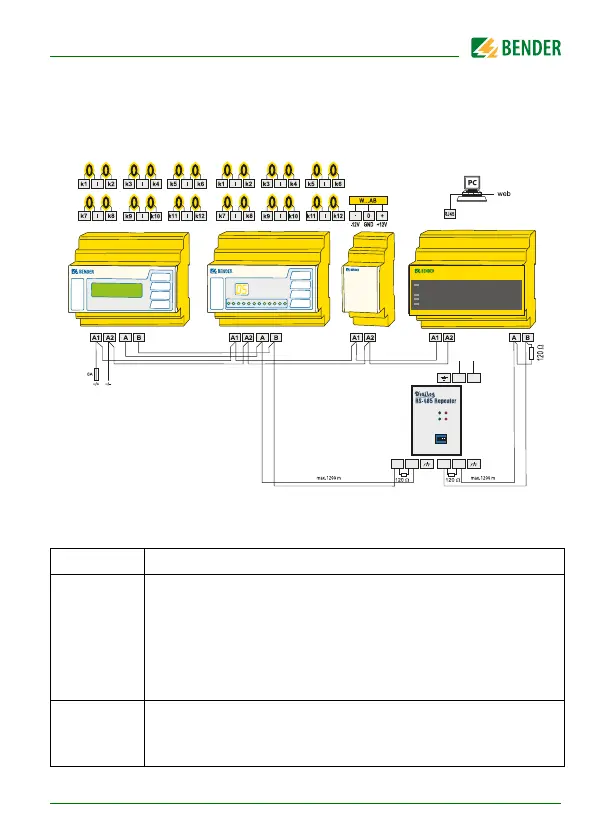

4.4.7 Example for a standard system design consisting of an
RCMS460-D and RCMS460-L and a protocol converter
COM460IP
Legend to connection example
RCMS… Residual current monitors
AN420 When AC/DC sensitive W…AB series measuring current
transformers are used, an AN420 or AN110 power supply
unit is required that supplies up to six measuring current
transformers of this type. When the supply voltage of
AN110-1 is < 30 V, the output power decreases, so that only
five measuring current transformers can be connected.
COM460IP Protocol converter for connecting the BMS bus (Bender
measuring device interface) with a TCP/IP (Transmission
Control Protocol/Internet Protocol) network via Ethernet.
COM465IP
RCMS460-L
AN420
RCMS460-D
DI-1DL
B/N A/P
NL
B/N A/P
U
S
AC 85…260 V
COMTRAXX®
ON
ETHERNET/IP
MODBUS/RTU
BMS
COM465IP
