An entry is made in the history memory.
An entry is made in the history memory.
RCMS…-D…: An alarm message is shown on the display.
Line 1: ALARM, PREWARNING or FAULT
Alarm 1 of 1 pending alarms
Line 2: Alarm status and alarm text: (e.g. residual current, digital in-
put, no Master, CT connection).
No alarm
Prewarning
Alarm, fault
Line 3: r.m.s. value
Line 4: BMS bus address of the RCMS and measuring channel on
which the alarm has occurred.
RCMS…-L…: The alarm LED of the affected measuring channel lights
up.
RCMS…-D4/-L4 only (channels 9…12):
When measuring the load current, a prewarning is indicated
in case of overcurrent only. In case of undercurrent a
prewarning is not indicated.

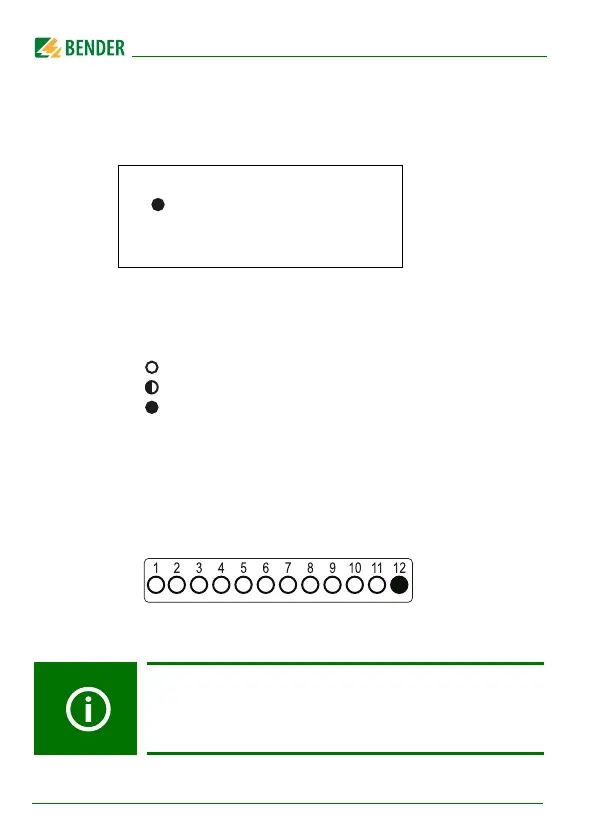

ALARM 1/1
Residual current
130 mA
Addr.: 2 Chan.: 12
