Berthold Duo Xpert - Configure a cascaded system

7 Main Menu Device Setup LB 470 Level
84
56925BA2 Rev. 03, 11/2017
Configure a cascaded system
Note the arrangement of the system components during configuration (see chap-
ter 3.2 Measuring Principle).
1
2
3
Selection box “Cascaded measurement”
Button < + >
Button <Edit>
4
5
Button <Search>
Window “Search detectors”

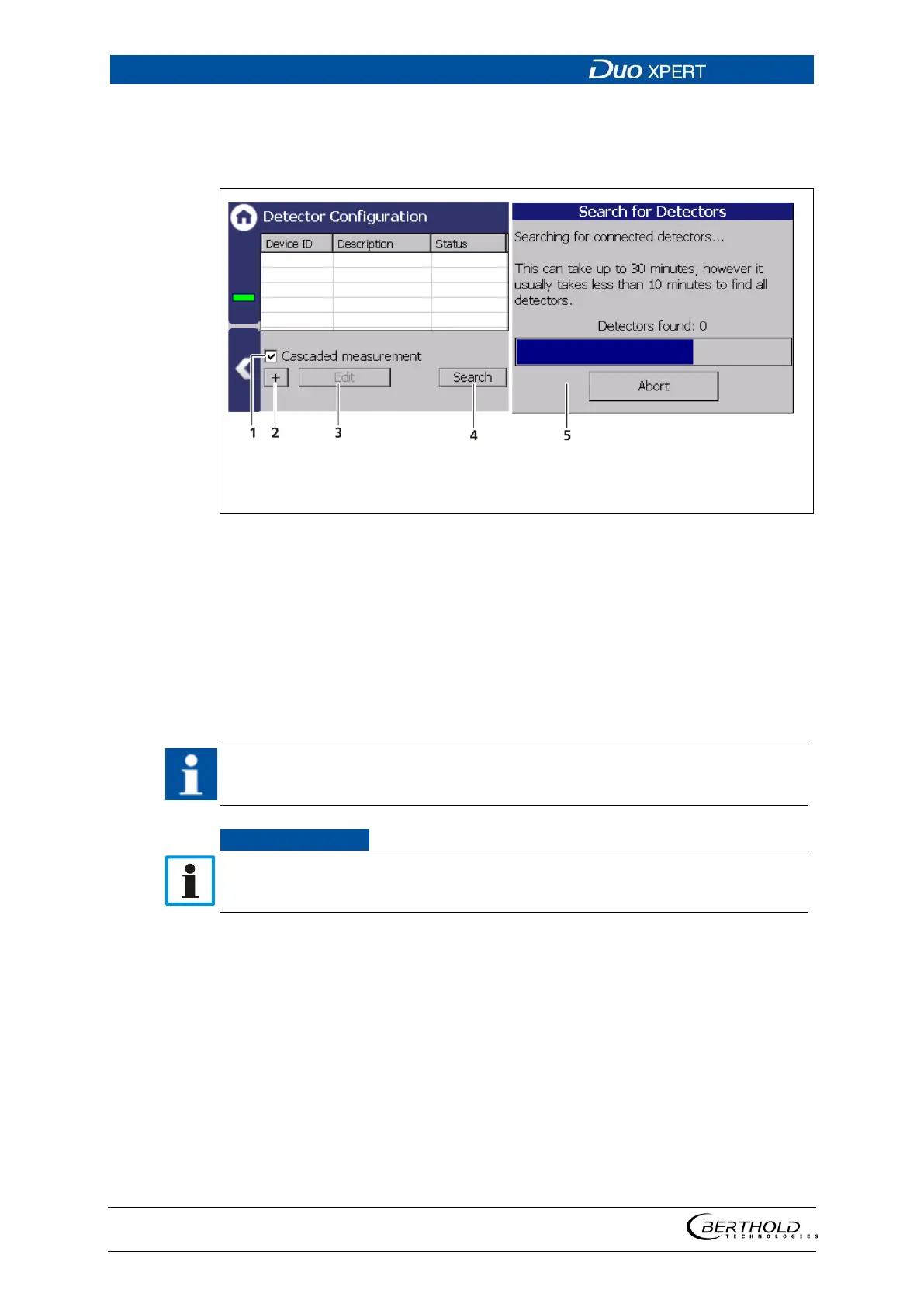

Fig.
61 Configure cascaded system
1. If the connection to the EVU (Master-Slave) is correct, the detectors type
LB47xx are detected and incorporated automatically. Click on the button
<Search> to incorporate connected detectors.
2. Activate the selection box “Cascaded measurement” (Fig. 61, item1).
3. Set the appropriate function for each detector (Fig. 60).
IMPORTANT
Both LED (Rx, Tx) indicators flash with proper installation and configuration of
a detector on the slave module.
NOTICE
Calibration must be performed according to the configuration of the entire
measuring system.
