Binder KB 53 (E4) - Chamber Rear - KB 53; 115 (E4)

KB (E4 + E6) 02/2017 page 18/148
2.4 Chamber rear – KB 53 / 115 (E4)
(6)
(2)
(3)
(5)
(7)

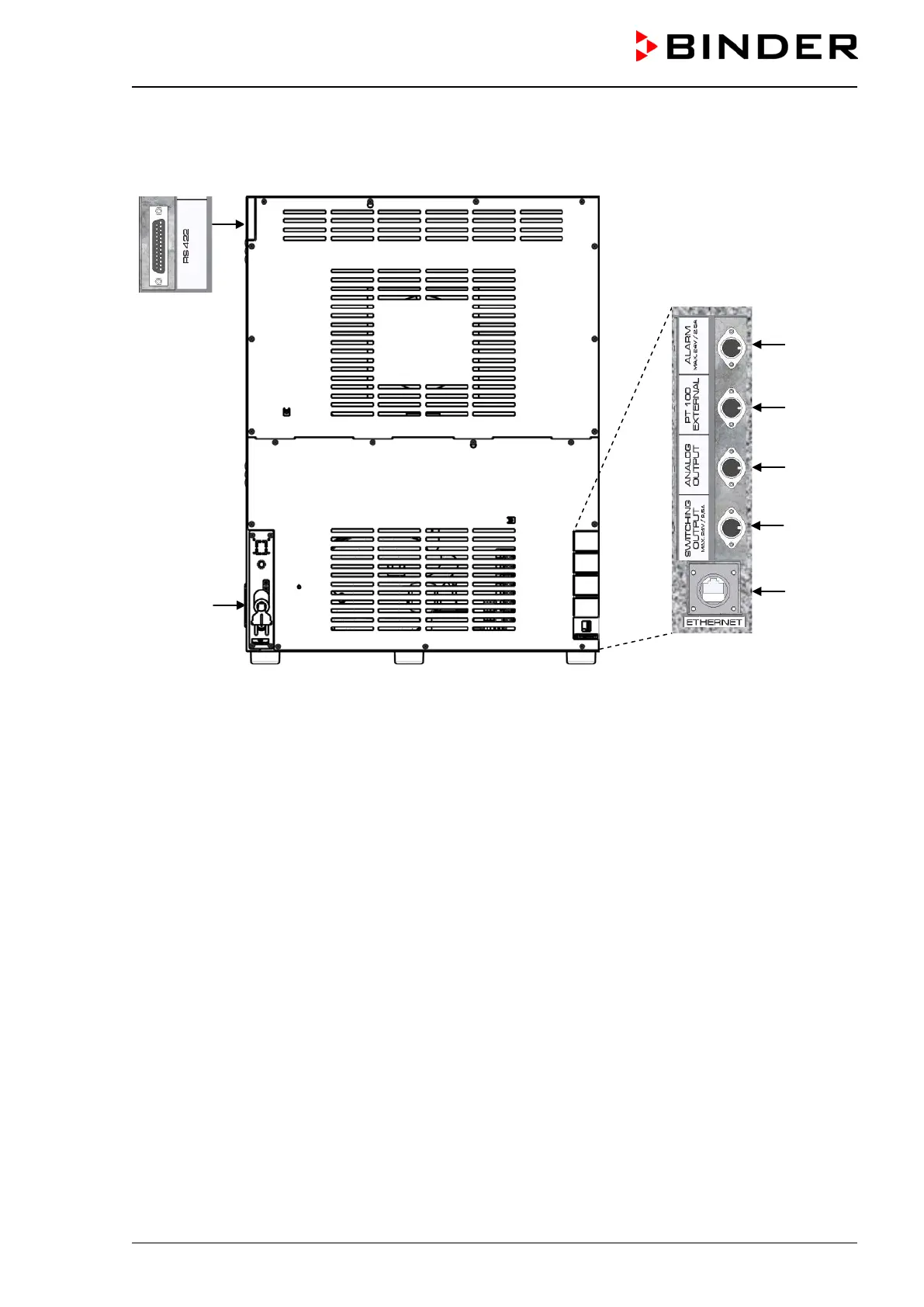

Figure 8: Chamber rear with position of options (example)
(2) DIN-socket for additional Pt 100 temperature sensor (may be available via BINDER INDIVIDUAL
Customized Solutions)
(3) DIN socket for analog output 4-20 mA (option)
(4) RS422 interface (option)
(5) DIN-socket for zero-voltage relay control outputs (may be available via BINDER INDIVIDUAL Cus-
tomized Solutions)
(6) DIN-socket for zero-voltage relay alarm output (option)
(7) Ethernet interface for computer communication
(8) Power cable
4)
(8)(
