USER MANUAL
TD069-O&M-001
REVISION 6
Page 11 of 80
QHPV
module

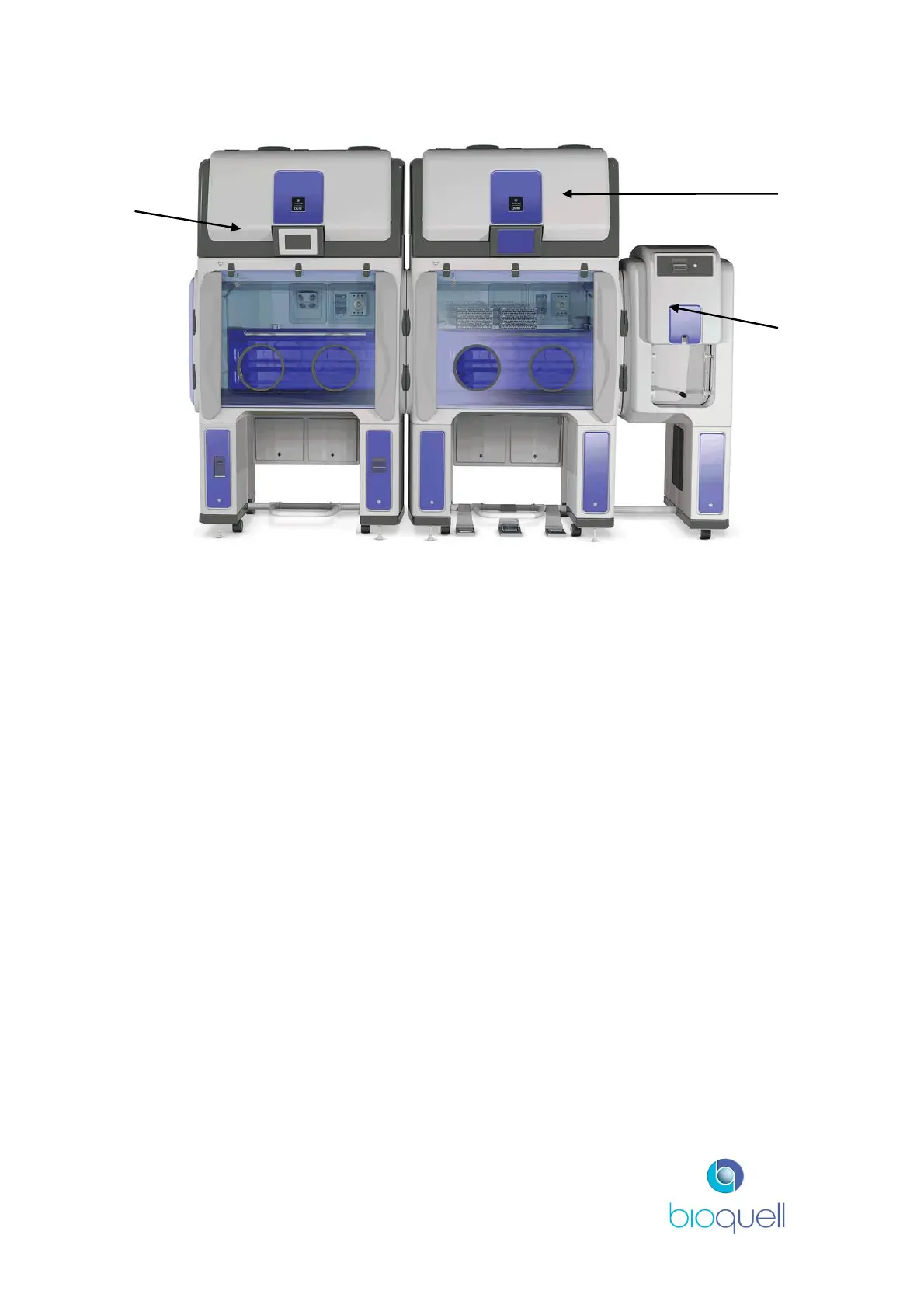

Figure 1: Typical Configuration of QUBE System
QEXT
module
QMTD
module
2.2.1QUBE Hydrogen Peroxide Vapour Module - QHPV
This chamber incorporates the HPV decontamination system and controls
including the touch screen. Each QUBE system incorporates a QHPV module. The
complete system is controlled via a Control Panel from the QHPV Module. Figure 2
depicts the main features of this module.
2.2.2QUBE Extension Module - QEXT
This module can be positioned either left, right or both sides of the QHPV
chamber. It enables the Operator to continue to ‘work’ on one load whilst
simultaneously decontaminating another load. If the system is configured with
more than one QEXT module then one may be used as an accumulator to store a
load whilst one is being processed and one being gassed.
2.2.3QUBE Side Door Module – QSDM
This module is positioned either on the left hand end, or right hand end, or both
ends of the chambers. It can be used to transfer the load between QUBE
modules, while providing a physical separation between modules allowing the
QHPV unit to run cycles on its own.
