Bioquell QUBE - Internal Electrical Connections

USER MANUAL
TD069-O&M-001
REVISION 6
Page 25 of 80
3.2.2Internal Electrical Connections

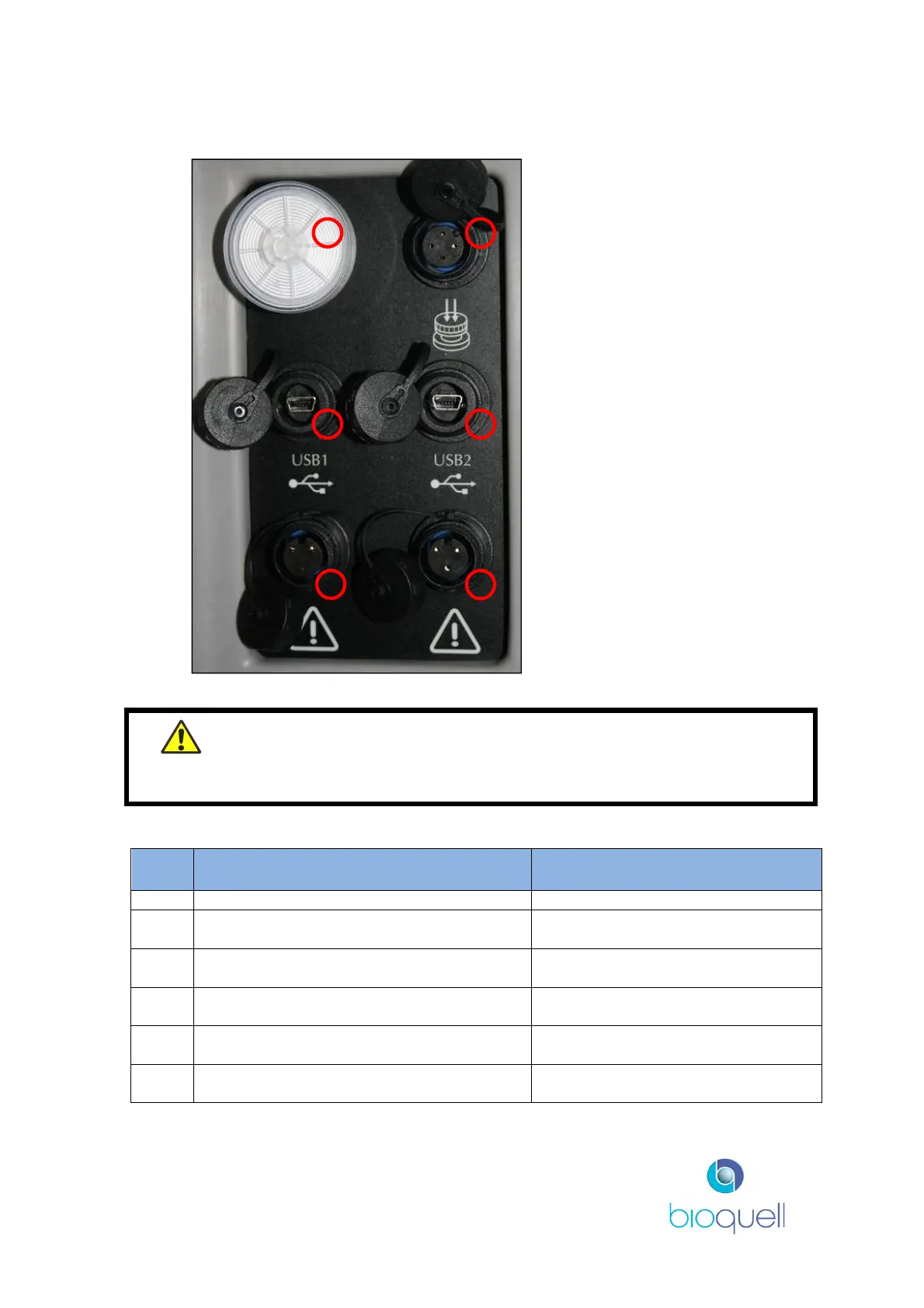

Figure 21: Internal Connections
Item
Description
Required mating connector
1
F
ilter for chamber pressure monitor.
N/A
2
Connection for active air sampler.
Bulgin PX0410/04P/4550
(insertion tool 13027/1)
3
Mini B USB for connection to USB1.
Mating
USB Mini B
(Bulgin PX0441
or PX0442)
4
Mini B USB for connection to USB2.
Mating USB Mini B
(Bulgin PX0441
or PX0442)
5
Accessory outlet (
≤200W)
230V/120V/100V.
Bulgin PX0410/03P/5560
(insertion tool 13027/2)
6
Accessory outlet (
≤200W)
230V/120V/100V.
Bulgin PX0410/03P/5560
(insertion tool 13027/2)
1
2
3
4
5
6
WARNING:
For the two accessory outlets (labelled 5 & 6) the total
power must not exceed 200W for the pair. Keep the covers on tight
when not in use to prevent electric shock when cleaning or pressure
leaks. Output voltage is the same as the unit’s supply.
