USER MANUAL
TD069-O&M-001
REVISION 6
Page 23 of 80
To avoid risk of electric shock the equipment must
only be connected to a supply main with protective earth.
Do not replace the mains cord with an inadequately rated one.
3 QUBE CONNECTIONS & SET-UP
3.1 Position
It is important that the Qube is not positioned in direct sunlight, or near sources
of heat or cooling such as autoclaves or heating/cooling vents. This may cause
heat build-up in the unit or compromise the decontamination cycles.
3.2 Electrical Connections
The following section describes the connections to and from the QUBE system –
these can vary dependent upon auxiliary equipment supplied.
It is recommended that only trained personnel should be employed if the QUBE
system requires moving any substantial distance as this would require electrical
disconnection. Thus, this section is primarily concerned with providing information
on how to connect auxiliary equipment to the QUBE. It is expected, however, that
occasionally the QUBE system is moved forwards to enable cleaning of the rear
faces.
The primary means for power isolation is via the ON/OFF switch on the rear of the
QHPV and QEXT modules. If, due to the QUBE being positioned against a wall,
this is not accessible then a secondary means of power isolation is required via a
wall socket which is accessible. Wherever possible the unit should be positioned
such that the primary means of isolation is accessible.
3.2.1External Electrical Connections
The electrical connections are positioned on the rear of the right hand QHPV
module leg.

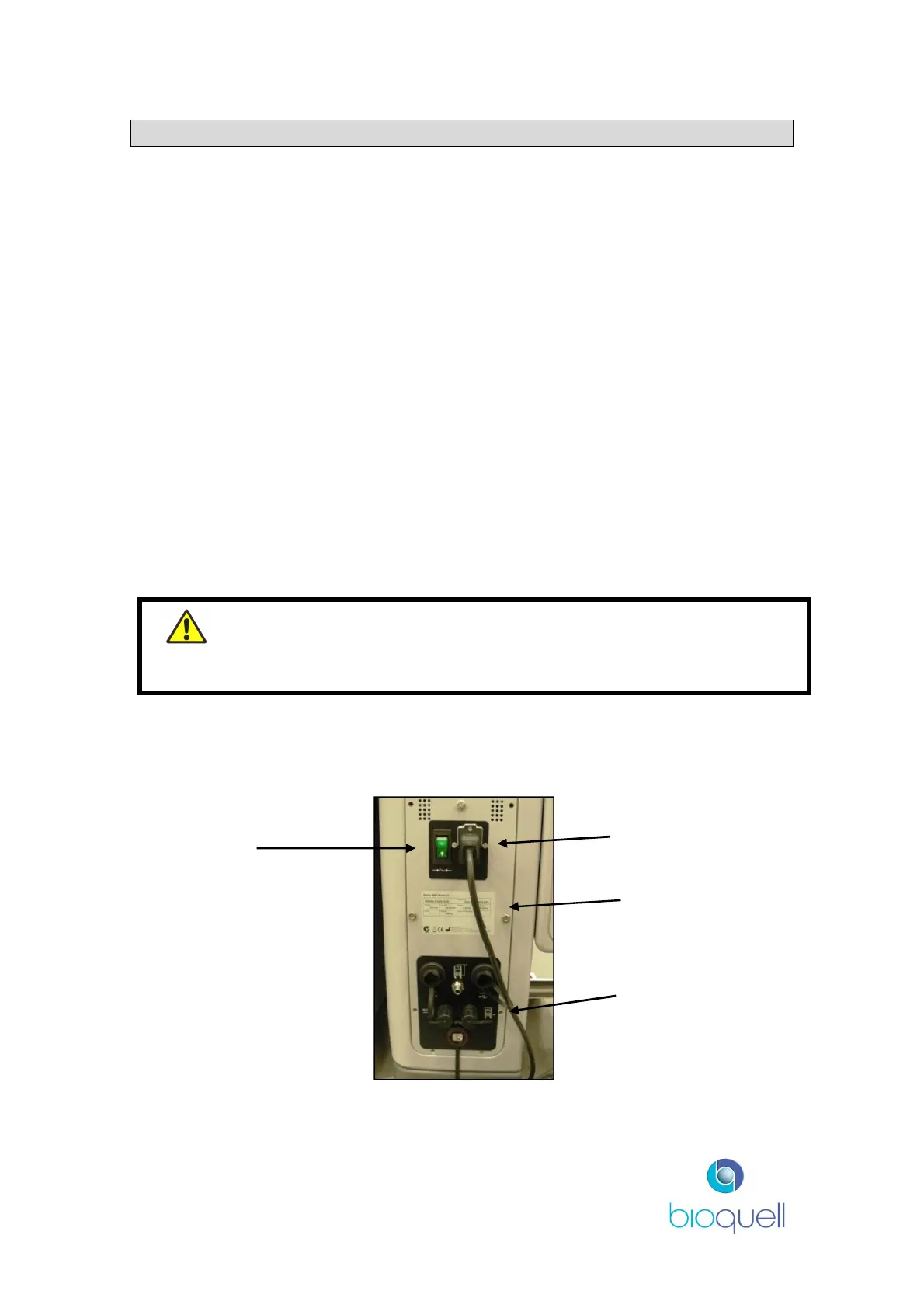

Figure 18: Electrical Connections (230V version shown)
ON/OFF switch
Connection Plate
(Refer to Figs. 18
& 19)
To Next Page
