USER MANUAL
TD069-O&M-001
REVISION 6
Page 16 of 80
For details on how to use the “SteriTest” pump refer to the Manufacturer’s
Instructions (supplied if part of ordered configuration).
To remove the drain connection press release button and pull out, as shown in
Figure 7.

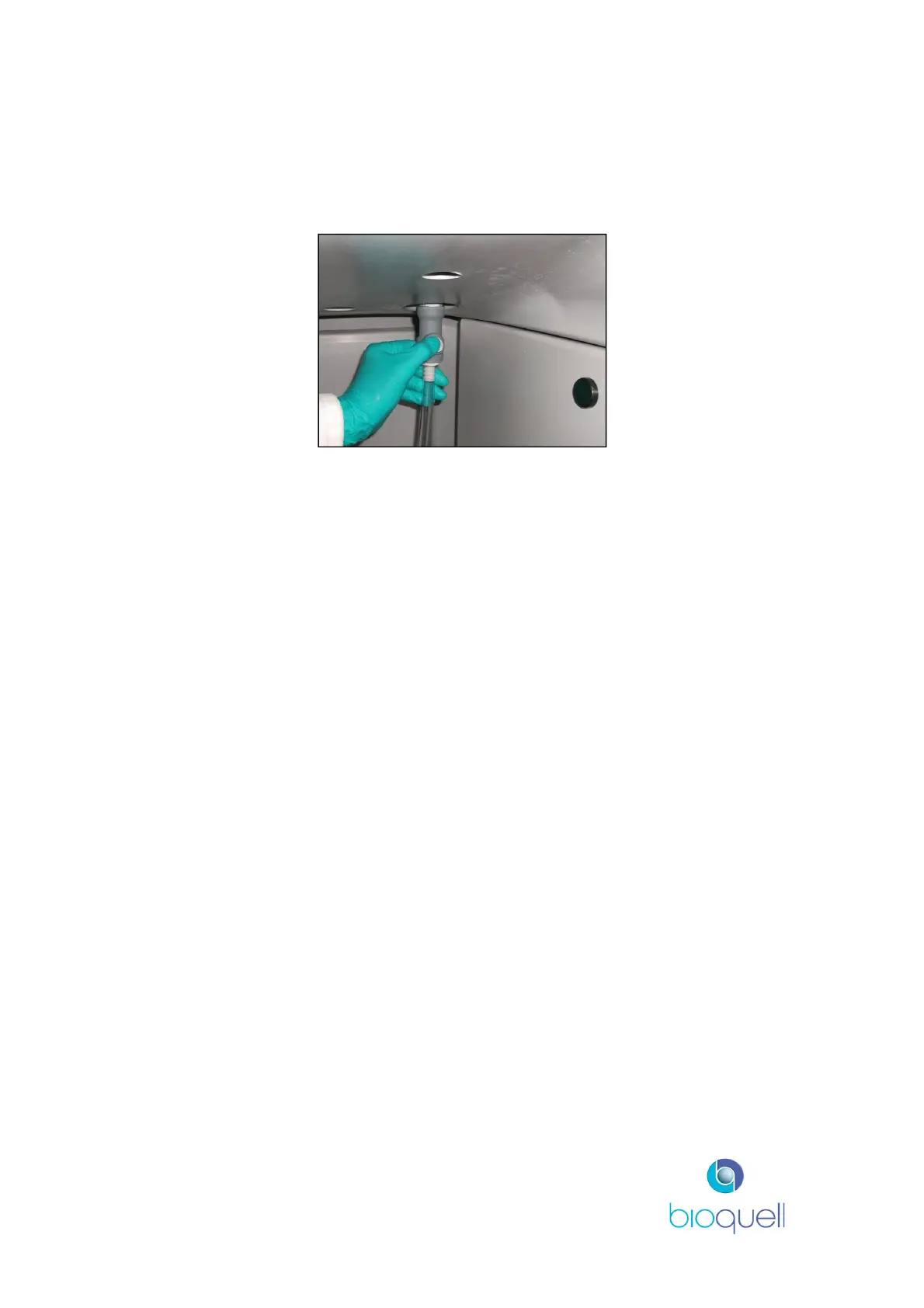

Figure 7: Removal of drain tubing
It is advisable to execute the scheduled maintenance of the “SteriTest” unit whilst
the QUBE is being serviced. Contact Merck Millipore for scheduling the Servicing
of this unit (refer to Section 6.2 for contact details).
The QUBE may also be supplied with the “SteriTest” pump drain only if a client-
supplied free standing SteriTest pump is installed.
Racking has been designed by Bioquell for this application. This racking is
available in kit form; refer to TD069-6200_PDS for how to assemble.
2.3.3Integrated Environmental Monitoring
2.3.3.1 Level 1 Environmental Monitoring Package
As standard the QUBE QHPV and QEXT chambers have been designed to allow
for Level 1 Environmental Monitoring to be performed. Level 1 Environmental
Monitoring consists of:
· Periodic particle monitoring checks using a portable particle counter
connected to the pre-fitted tube and supplied ISO-Kinetic cone. A blanking
cone is also supplied, to be fitted instead of the ISO-Kinetic cone when
sampling is not taking place. The particle monitor is not supplied by
Bioquell.
· An integral connector inside the chamber can be used to connect to an
Active Air Sampler (see Fig. 21, Item 2), and a coupler is provided (see
Fig. 12) on the QUBE’s right leg to enable connection to the air sampler’s
power device. The Active Air Sampler and power device and settle plates
are not supplied by Bioquell.
· Settle plates and other alternative monitoring methods may be adequate,
as shown in Figure 8.
