USER MANUAL
TD069-O&M-001
REVISION 6
Page 28 of 80

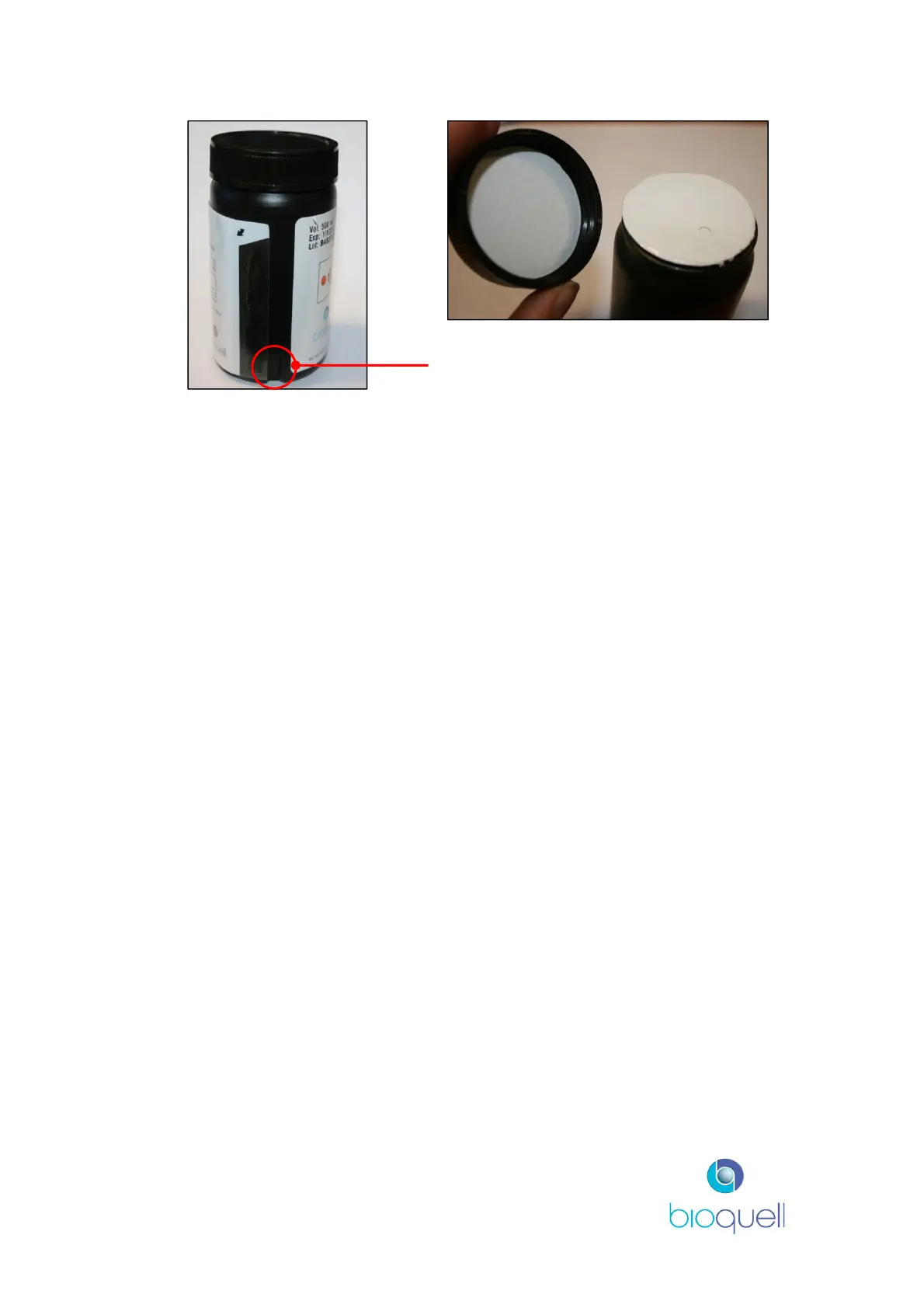

Figure 25: Bottle showing register
Figure 26: Bottle with cap removed
Register
The bottle, as depicted in Figure 25, incorporates a register feature to ensure the
Operator has correctly aligned the RFID tag with the reader within the QUBE.
Each QUBE bottle is equipped with a semi-permeable membrane which provides
adequate sealing and ventilation of the bottle. Disposal and/or recycling of the
QUBE bottle must be in accordance with local regulations due to the contents
being hazardous waste.
Refer to section 4.3.2 for details on how to load the consumable bottles when the
QUBE is to run a decontamination cycle.
