USER MANUAL
TD069-O&M-001
REVISION 6
Page 38 of 80
If there is insufficient Hydrogen Peroxide for the cycle the bottle must be
changed.
To change the bottle press the button (only visible if bottle already loaded)
and follow the actions depicted by the on-screen animation. The animation
sequence depicted is dependent upon whether a bottle was installed to start with
or not.

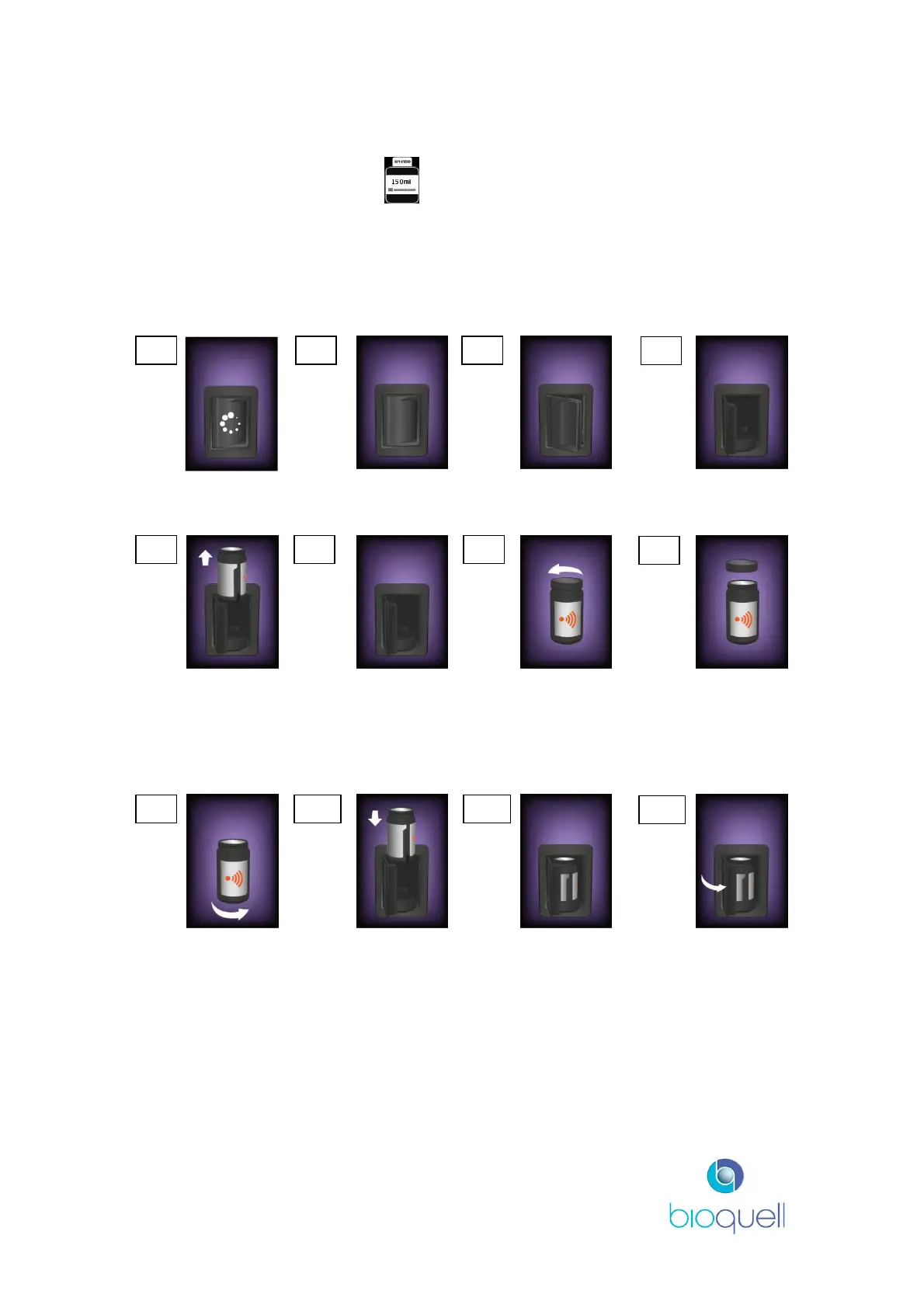

The following images assume the Hydrogen Peroxide is to be replenished; thus
includes first removing the bottle:
Waiting for the bottle
module to unlock
Bottle module ready to
open
Operator to open the
bottle module door
Bottle module door
opened
Operator to remove
existing bottle, if
present, and discard
in accordance with
local regulations
Bottle module door
open
To load new bottle
Operator to:
Unscrew bottle cap by
rotating counter-
clockwise.
Operator to remove cap
and keep.
Rotate the bottle to
ensure the RFID
symbol is to the right
and then it will drop
into place. Refer to
Figure 30.
Operator to place bottle
within bottle module.
Bottle loaded. Operator to close bottle
module by pushing
gently. If the door
cannot be closed
because the bottle is
protruding, rotate the
bottle until it drops down
and the bottle module
door can be closed, or
remove the lid.
109 11
12
5 6 7
8
1 2 3
4
