4.3.4.1 Pressure test (optional)
The pressure test, for checking QUBE leak integrity, can be done as a stand-alone
test, or it can be at the beginning of a cycle. The chamber is pressurised to a set
pressure. The pressure change is monitored and if it changes more than a set
value within a given time the system shuts down.

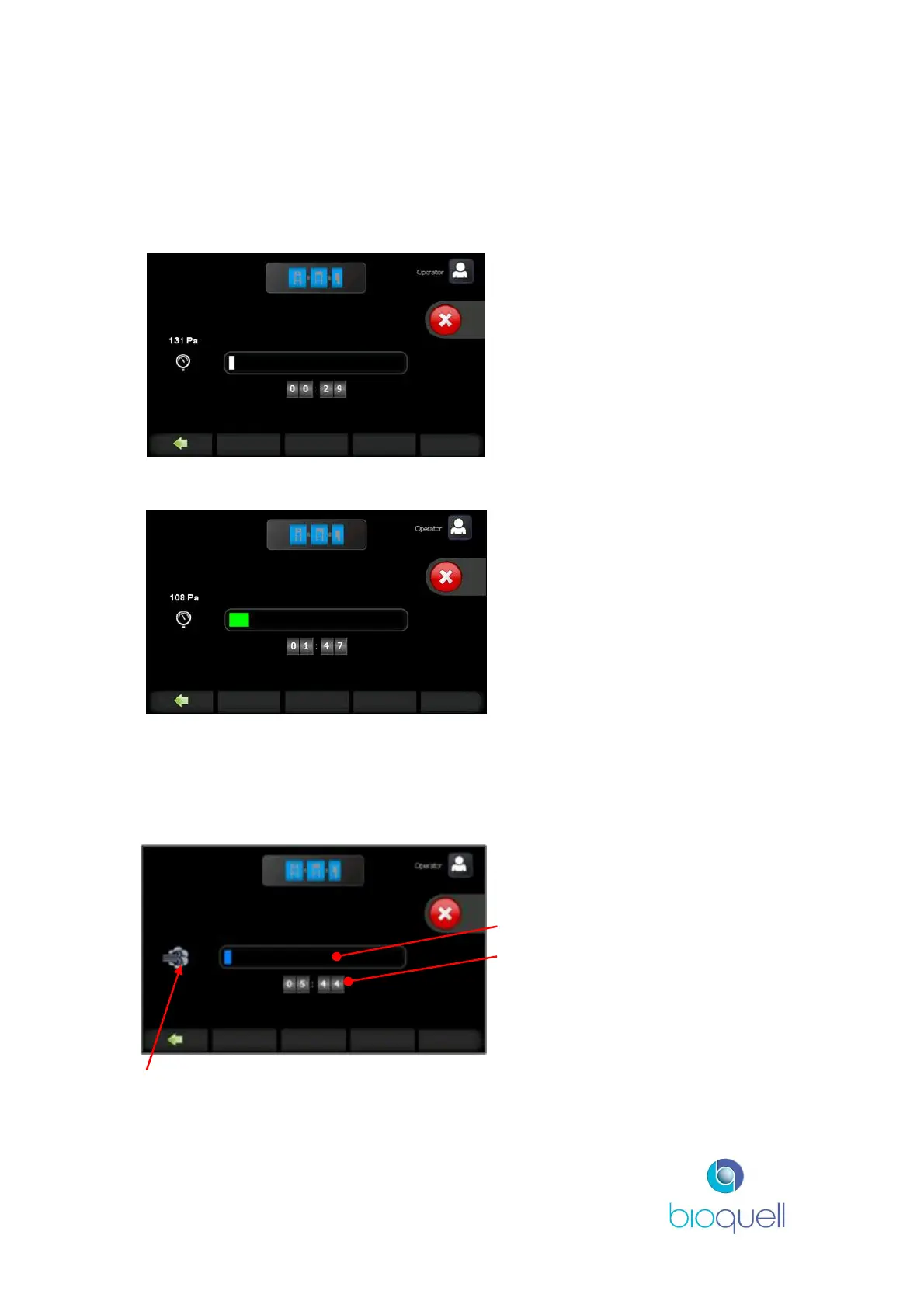

The unit will initially build
pressure to the set point, only the
pressure will be displayed.
When the pressure has been
reached, the unit goes through a
stabilisation phase, when a white
slider and a countdown will also be
displayed.
The green slider represents the
leak test in progress with the
countdown time displayed.
4.3.4.2 Conditioning Phase
When the unit starts conditioning the system initialises, configures itself, and the
vaporiser gets up to its operating temperature.
Progress bar
Phase countdown (Conditioning
takes 7 minutes)
Conditioning phase icon
