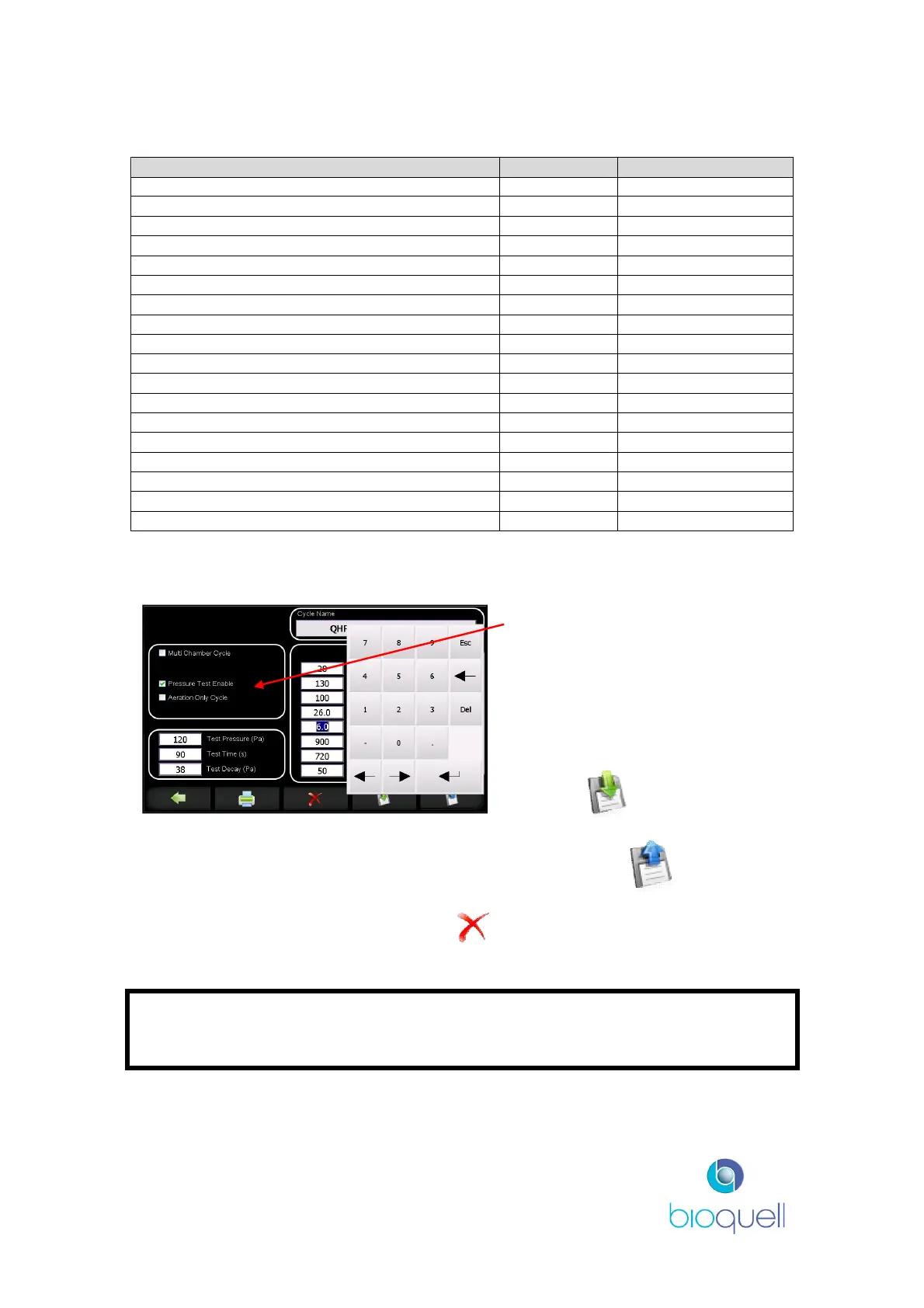

The following table details the recipe parameters that can be altered:
Description
Units
Limits
Multi
chamber
-
ON/OFF
Pressure Test Only
-
ON/OFF
Pressure Test
Enable
-
ON/OFF
Aeration Only
Cycle
-
ON/OFF
Parametric
gassing
-
ON/OFF
Cycle Name
-
24 characters
Test Pressure
Pa
-
240
-
+240
Test Time
s
0
-
9999
Test Decay
Pa
1
-
200
Recirc Flow
Rate
%
0
-
100
Delivery Temperature
ºC
15
-
45
Vaporiser Airflow
Rate
m
3
/h
5
-
400
H2O2 Alert Level
ppm
0
-
1000
H2O2
Mass to Inject
g
5
-
166
H2O2 Injection Rate
g/min
1.5
-
6.0
Dwell Time
s
120
-
9999
Minimum Aeration Time
s
300
-
9999
Pressure Setpoint
Pa
-
100 to +100
To create new or edit existing recipes:
For new cycles start by removing
all the ticks in the left hand box.
Then choose the type of cycle and
edit the parameters to the values
required via the numerical keypad.
(If Multi Chamber Cycle is not
ticked it will be a QHPV only cycle)
When all values have been entered
press the button, rename the
recipe (if required), then load it by
depressing the button.
A recipe can also be deleted by pressing . A confirmation box will appear.
Applicable to USA only
:
The QUBE must be operated in accordance
with the
Bioquell Hydrogen Peroxide sterilant labelling. It is Federal offence to use
pesticides in a manner inconsistent with their labelling.
